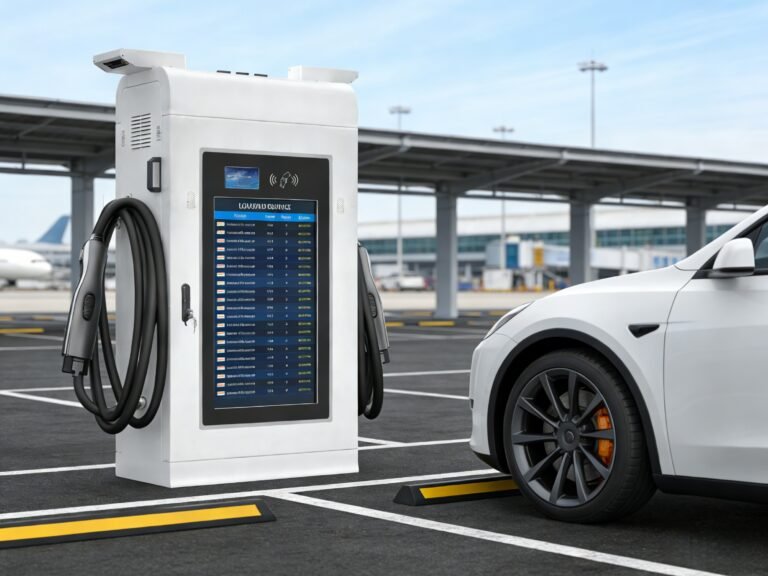

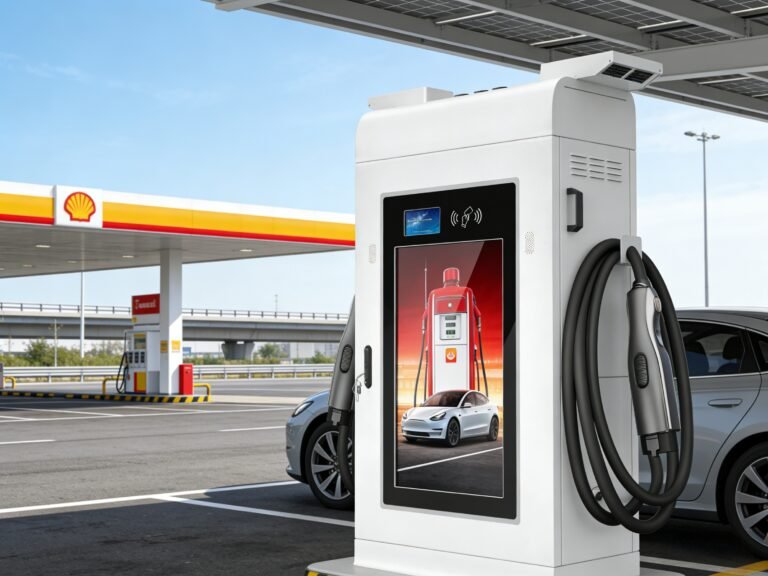

360kW DC Fast Charger with 43-Inch Advertising Display
A 360 kW high-power DC charging station with single- or dual-connector operation and a 43-inch advertising display. The this product combines optional liquid-cooled guns, 200–1000 V output, OCPP networking and Android-based media delivery for public hubs, highways, fleets and smart-city sites.
Built for public hubs, highways and fleet depots
- Shopping centers
- Public charging hubs and highways
- Fleet depots and logistics parks
- Smart-city information and charging sites
Características de carga para despliegue profesional
- 360 kW output with customizable power configuration.
- Single-connector full-power or double-connector equalized charging.
- Optional liquid-cooled guns with a source-listed 0–600 A output range.
- 43-inch advertising monitor plus 7-inch charging touch screen.
- 2000 cd/m² display luminance and 1920 × 1080 resolution.
- OCPP, 4G, Wi-Fi and Ethernet remote management.
- IP54 enclosure for indoor or outdoor operation.
Opciones de modelo y potencia
| Configuración | Potencia | Voltaje de entrada | Voltaje de salida | Corriente de entrada | Corriente de salida | Longitud del cable | Peso |
|---|---|---|---|---|---|---|---|
| Configuración 1 | 360 kW; customizable | AC 380 V ±20% (480 V optional) | 200–1000 V DC | 0–630 A | 0–600 A with liquid-cooled gun | 5 m standard; optional | About 660 kg |
Soporte de configuración de proyectos
La potencia nominal, la configuración del conector, la longitud del cable y las opciones de red se pueden seleccionar para adaptarse al mercado objetivo y a los requisitos del proyecto. Contacte a Yirox para soporte de configuración y una cotización de proyecto.
