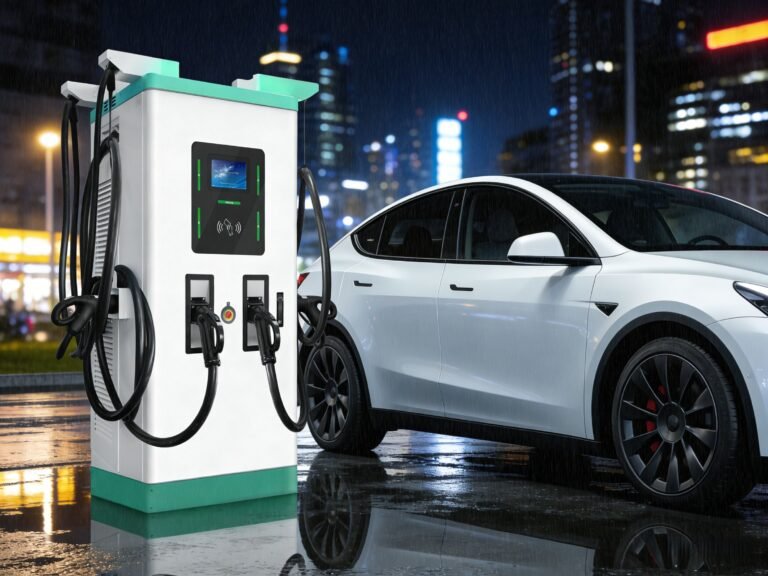

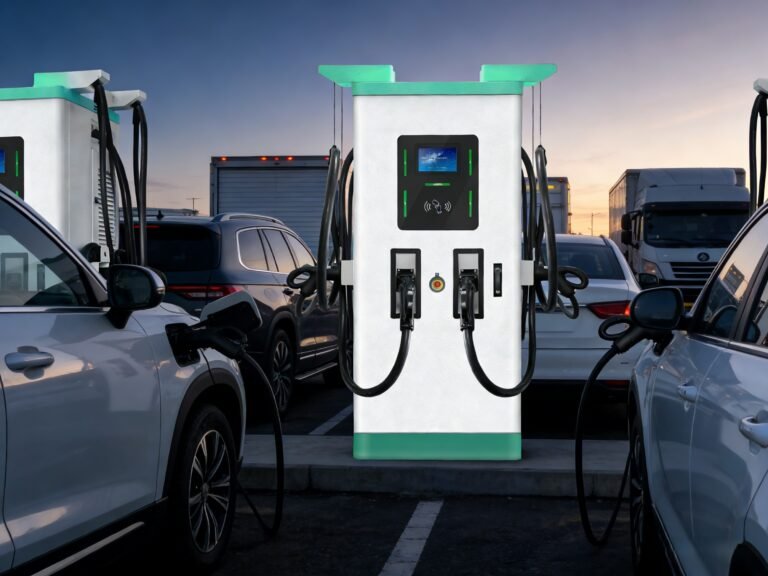

480kW Four-Gun Heavy-Duty DC Fast Charging Station
A 480 kW ultra-fast DC charger for heavy-duty logistics, buses, mining equipment and highway charging. The this product supports one to four regional connector combinations, single-gun 240 kW operation or four-gun equalization, 200–1000 V output, OCPP-connected management and air- or liquid-cooled cable options.
Built for heavy-duty fleet and highway charging
- Heavy-duty logistics
- Public transit hubs
- Mining and construction
- Highway service stations
Características de carga para despliegue profesional
- 480 kW total output for heavy-duty and high-throughput applications.
- Single-gun 240 kW charging or four-gun ABCD equalized operation.
- One to four guns with CCS1, CCS2, GB/T, NACS and CHAdeMO combinations.
- 200–1000 V output and up to 300 A maximum current per gun.
- OCPP 1.6J/2.0 remote management and OTA updates described on the page.
- IP54 enclosure with comprehensive electrical and thermal protection.
- Air-cooled or liquid-cooled cable options and customizable cable lengths.
Opciones de modelo y potencia
| Código de artículo | Potencia | Voltaje de entrada | Voltaje de salida | Corriente de entrada | Corriente de salida | Longitud del cable | Peso |
|---|---|---|---|---|---|---|---|
| YX-EC-009 | 480 kW | AC 380 V ±20% | 200–1000 V DC | 0–800 A | 0–300 A maximum per gun | 5 m standard; optional | Approx. 400 kg |
Soporte de configuración de proyectos
La potencia nominal, la configuración del conector, la longitud del cable y las opciones de red se pueden seleccionar para adaptarse al mercado objetivo y a los requisitos del proyecto. Contacte a Yirox para soporte de configuración y una cotización de proyecto.
