Wide tape 5g+10g x 4 grey weights: what are they?

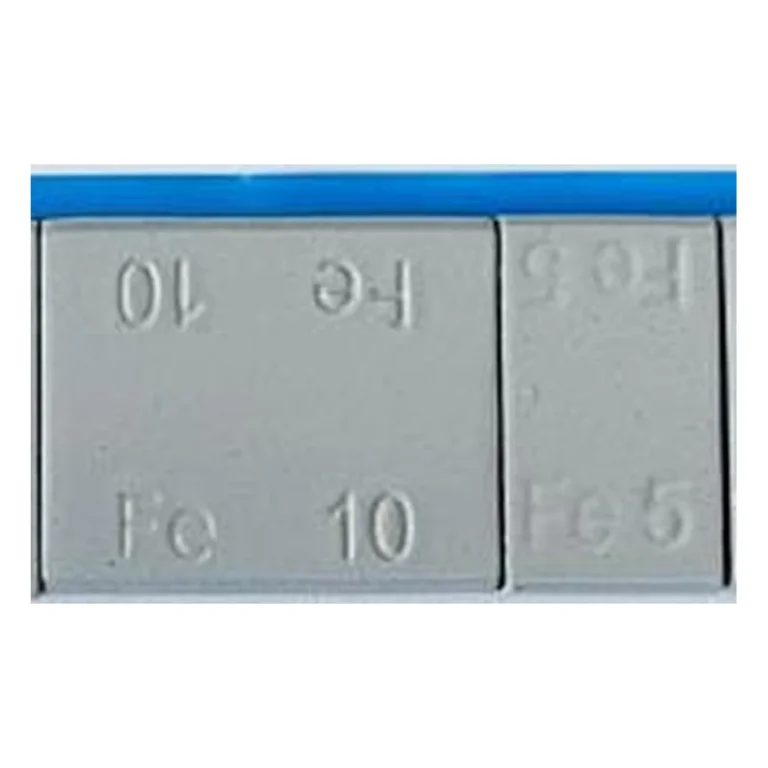

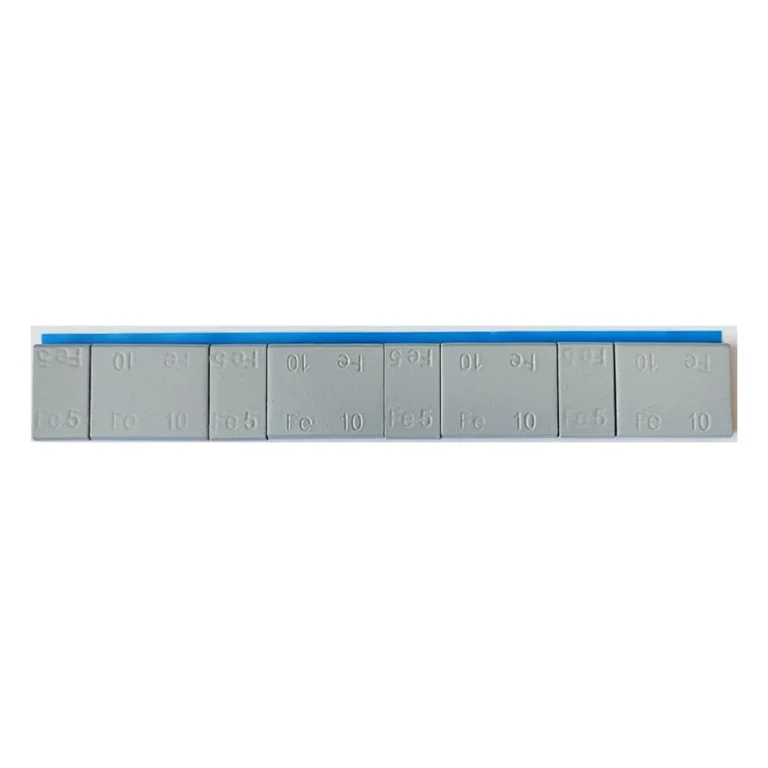

This is a lead-free steel (Fe) stick-on weight for the inner barrel of alloy rims on passenger cars and light trucks, with four 5g and four 10g rectangular segments on a 60g strip. Its wide-edge tape extends about 2 mm beyond the wide side of the strip, giving technicians a tab to grip so the backing comes away quickly, even in gloves. Zinc plating under a grey coat resists corrosion and blends with silver and grey alloys.
It suits high-volume tyre shops, quick-fit chains, seasonal tyre change operations and distributors who want to cut handling time on every wheel without switching to a roll dispenser.
How does a wide tape edge save time?
Picking at a flush-cut liner takes only seconds, but across a full day of seasonal tyre changes those seconds become real labour cost.
- Faster peeling: no picking at the liner with a fingernail or tool.
- Cleaner fitting: less finger contact with the adhesive, which helps the weight bond properly.
- Fewer pieces: 10g segments cover larger corrections, while 5g segments fine-tune.
If you prefer rounded segments, see the grey wide-tape 5g x 12 weights. If you only need 5g steps, compare the wide tape grey 5g x 12 strip.
Tape choices for this strip
Choose the blue wide-edge tape for everyday work, or a branded tape if your customers ask for one.
| Tape type | Typical use |
|---|---|
| Wide-edge blue tape | Liner extends about 2 mm past the strip so it can be gripped and peeled quickly, even with gloves |
| 3M tape | Branded 3M adhesive for buyers who specify a named tape |
| Norton tape | Branded Norton adhesive as an alternative named tape |
Tell our sales team about your climate and rim types and we will recommend the most suitable tape; other colours can be discussed on request.
Specification table
| Product type | Adhesive / stick-on wheel balance weight |
|---|---|
| Material | Fe (steel), lead-free |
| Shape | Rectangular segments |
| Weight pattern | 5g x 4 + 10g x 4 segments (60g per strip), 2 mm wide tape edge |
| Surface treatment | Zinc plated + grey coating |
| Tape options | Wide-edge blue / 3M / Norton |
| Packing | 25 strips per bag, 4 bags per box (100 strips per box) |
| Suitable for | Alloy rims (inner barrel), passenger cars and light trucks |
| Customization | Minor, drawing-based and sample-based customization available |
Choosing between this and similar weights
Standard tape is cut flush with the strip; wide-edge tape adds a peel tab. If your technicians are happy with flush tape, or you want more tape colours, see our grey coated 5g+10g x 4 strip. For dark rims see the black 5g+10g weights, and for a plain metal look the zinc plated 5g+10g weights.
For heavier corrections, the 10g strips are a natural step up, and very high-volume bays may prefer a 5g roll. For steel rims, clip-on weights are the usual answer.
Packing and shipping
Strips are packed 25 per bag and 4 bags per box, giving 100 strips per box, then packed into export cartons for sea or air freight. Share your destination port and we will advise on carton count and shipping so you can plan warehouse space and arrival dates.
Private label and OEM requests
The factory supports minor, drawing-based and sample-based customization, including logo printing on boxes, private label packing, custom tape types and alternative coating colours. Send your artwork and we will agree the details and lead time with you.
Ready to ask for a quote?
We supply wholesale and bulk orders with low MOQ on selected items. For an accurate quote, please include:
- Quantity (boxes or strips)
- Tape type: wide-edge blue, 3M or Norton
- Any colour or logo requirements
- Packaging: standard bag/box or private label
- Destination port or country
Send your inquiry to Yirox and our team will reply with options.
Frequently asked by buyers
What does “wide tape” actually mean here?
The adhesive liner extends about 2 mm beyond the wide side of the strip, working as an easy-peel tab so technicians remove the backing without picking at it.
Do these weights contain lead?
No. They are zinc plated and grey coated steel (Fe).
How should they be fitted?
Clean and dry the marked spot on the inner barrel at room temperature, peel by the wide edge without touching the adhesive, and press firmly along the whole strip.
Is private label packing available?
Yes, logo printing and private label packing are available on request.
