Spot, flood, and combo LED light bars differ in how they shape light: a spot beam reaches far forward, a flood beam spreads wide at short range, and a combo beam blends both in one housing. The best choice is not the brightest listing; it is the pattern that puts usable light where the driver actually needs it.
That difference matters because many light bars look similar in a product photo. Two bars can have the same length, wattage, and lumen claim, yet one may punch down a trail while another only washes the shoulders and foreground.
For off-road drivers, installers, retailers, and accessory buyers, beam pattern is one of the first decisions to make. Pick the wrong one and the result can be glare, dark corners, wasted output, or disappointed customers.
Table of Contents
- What is the difference between spot, flood, and combo LED light bars?
- When should you choose a spot beam LED light bar?
- When does a flood beam LED light bar make more sense?
- Is a combo LED light bar the best choice for most drivers?
- How do you choose the right beam pattern for your vehicle?
- Does mounting position change which beam pattern works best?
- What should buyers check beyond spot, flood, or combo?
- Conclusion: Match the beam to the job before chasing more lumens
- Frequently Asked Questions
- References

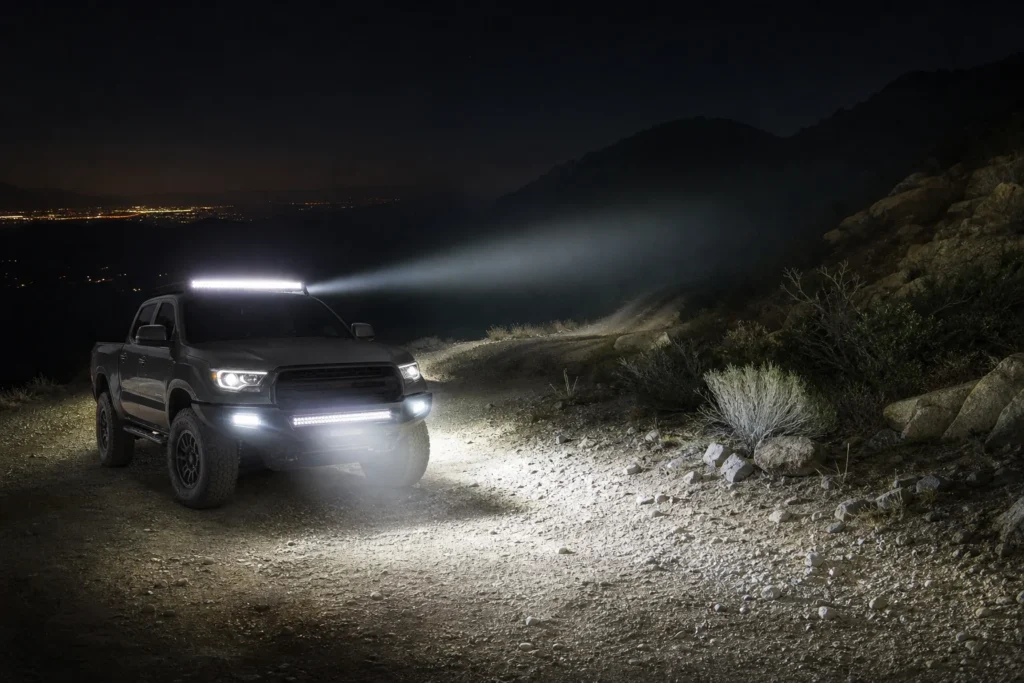

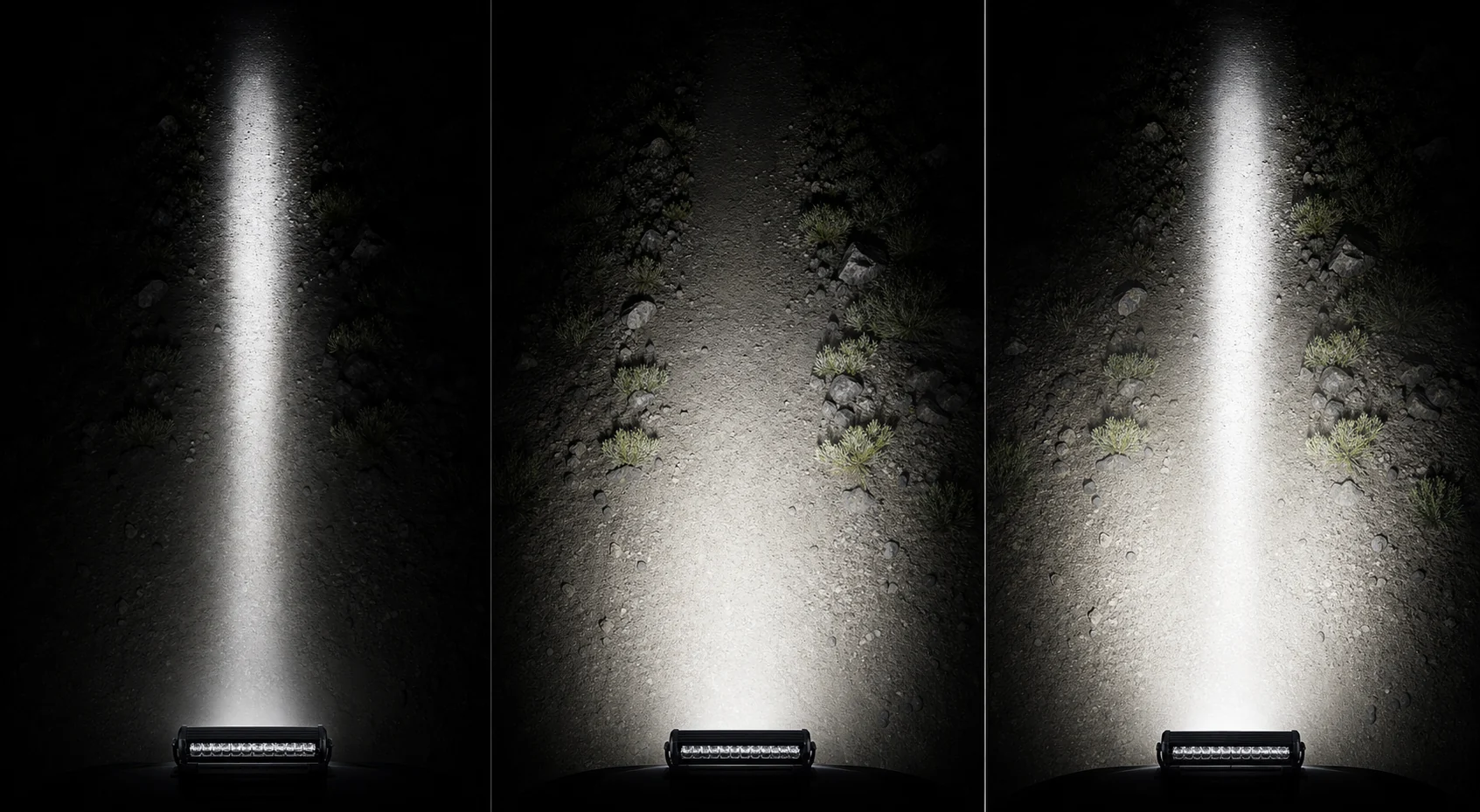

What is the difference between spot, flood, and combo LED light bars?
A spot LED light bar is built for distance, a flood LED light bar is built for width, and a combo LED light bar uses both beam styles to cover near and far areas together. The difference comes from the optics in front of or around the LEDs, not simply from the number of LEDs in the bar.
In a spot beam, reflectors or lenses concentrate light into a narrower forward cone. This creates stronger intensity down the center of the trail, but the sides may stay darker unless the vehicle also has ditch lights, pods, or a wider secondary beam.
In a flood beam, the optics spread light across a wider area. This is useful for slow technical driving, work sites, reverse lighting, campsites, loading areas, and trail edges. Because the same output is spread over a larger angle, the beam usually does not reach as far as a spot beam with similar power.
A combo beam mixes spot and flood optics in one bar. Many combo bars place spot optics near the center and flood optics near the outer sections. This gives the driver some forward reach plus side spread, which is why combo light bars are common on trucks, Jeeps, ATVs, UTVs, farm vehicles, and general off-road builds.
| Beam pattern | Main job | Typical strength | Main trade-off | Best use |
|---|---|---|---|---|
| Spot | Long-distance forward visibility | Farther throw and stronger center intensity | Narrower side coverage | Faster trails, open terrain, rural tracks, long approaches |
| Flood | Wide close-range visibility | Better shoulder, work-area, and near-field coverage | Shorter reach and more foreground glare if aimed badly | Slow trails, recovery, work lights, camping, reverse lighting |
| Combo | Balanced mixed coverage | One bar covers both center distance and side spread | Quality varies by optic layout and spot/flood ratio | General off-road driving, one-bar setups, mixed terrain |
This is also why lumen numbers can be misleading. Lumens describe total light output, but they do not explain where the light lands. A high-lumen flood bar may look extremely bright in front of the bumper but fail to show hazards far ahead. A lower-lumen spot bar with better optics may feel more effective at speed because its light is concentrated where the driver needs reaction time.
Regulations and road use also matter. In the United States, commercial motor vehicle rules say auxiliary driving lamps and front fog lamps may be used only in conjunction with required headlamps, not as replacements 1. NHTSA has also discussed how supplemental lighting must not impair required lighting equipment 2, so off-road bars should be selected, wired, and aimed with glare control in mind.
When should you choose a spot beam LED light bar?
Choose a spot beam LED light bar when the main problem is seeing farther ahead, especially on open trails, rural property, desert tracks, high-speed off-road sections, or long straight approaches. A spot beam is about reach, reaction time, and centerline visibility.
Spot beams are useful when the driver needs to identify dips, rocks, washouts, gates, or trail direction before reaching them. The best spot beam is controlled, not just intense; good optics keep the beam cleaner and more predictable, which reduces visual fatigue during long night driving.
Spot beams work especially well in these situations:
- Open terrain: Deserts, wide trails, farms, ranch roads, and rural service routes benefit from longer throw.
- Higher speeds: The faster the vehicle moves, the more distance the driver needs to see.
- Bumper or grille mounting: A lower forward mount can reduce hood glare compared with a high roof bar.
- Paired lighting systems: Spot bars pair well with flood pods, ditch lights, or fog-style lamps that fill the near field.
The weakness is side visibility. A pure spot bar can make the center of the trail bright while leaving corners, ruts, and tree lines less visible. Spot beams can also be uncomfortable around reflective signs, dust, fog, snow, or traffic, so public-road buyers should look for lamps designed and marked for the intended legal function instead of assuming any off-road spot bar is street-ready 3.
When does a flood beam LED light bar make more sense?
A flood beam LED light bar makes more sense when the driver needs broad close-range visibility instead of long-distance throw. It is the better pattern for slow trails, work lighting, reverse lighting, recovery, loading, camping, and any situation where seeing the edges matters more than seeing far down the road.
Flood beams are helpful because off-road problems are often close to the vehicle: a rock beside the tire, a rut near the shoulder, a hitch during trailer hookup, or tools at a night work site. The wide spread is also useful for ATVs, UTVs, farm vehicles, and service trucks that move slowly around dark areas.
Flood beams are usually a poor choice for fast driving as the only forward light. Because the light spreads wide, intensity drops more quickly with distance. The foreground may look bright while the far trail remains underlit. That bright foreground can even make the driver’s pupils adapt to nearby light, making distant hazards harder to see.
Fog, dust, rain, and snow need extra care. A wide beam mounted high can reflect light back into the driver’s eyes. This is why a real fog lamp pattern is not the same thing as any flood light. Front fog lamps have their own performance expectations and aiming requirements under standards such as SAE J583 4, while many off-road flood bars are designed for trail or work use rather than public-road fog use.
For buyers, the practical rule is simple: choose flood when the job is width, area, and low-speed control. Do not choose flood just because the product photo looks bright against a wall; trail usefulness depends on where the beam lands after installation.
Is a combo LED light bar the best choice for most drivers?
A combo LED light bar is often the best single-bar choice for mixed off-road use because it gives some distance and some side coverage in one product. It is not automatically the best choice for every vehicle, but it is the most forgiving option when the driver wants one bar for several conditions.
Most combo bars combine center spot optics with outer flood optics. The important detail is the spot-to-flood balance: some combo bars lean toward faster open terrain, while others lean wider for slower crawling and tighter trails.
Combo bars are strongest when the buyer wants:
- One main front light bar: A combo beam gives a more complete view than a pure spot or pure flood bar in many one-bar setups.
- Mixed trail speeds: Drivers moving between open tracks and slower technical sections benefit from balanced coverage.
- Simpler inventory: Retailers and distributors can offer combo bars as a practical default while still carrying spot and flood options for specialized builds.
- Cleaner installations: One bar may be easier to mount and wire than separate spot and flood lamps.
The downside is compromise. A combo bar will not throw as far as a dedicated spot bar of similar quality, and it will not spread as evenly as a dedicated flood or scene light. During Yirox Team sample evaluation, the useful question is not whether the label says spot, flood, or combo; it is whether the beam is repeatable, aimable, and matched to the promised use case.
How do you choose the right beam pattern for your vehicle?
Choose the beam pattern by starting with speed, terrain, mounting position, and the lighting already on the vehicle. Once those are clear, size and lumen output become easier to judge.
For fast open trails, a spot or spot-heavy combo usually makes the most sense. The driver needs more forward throw and less wasted foreground brightness. For tight wooded trails, rocky crawling, recovery work, and campsites, flood or flood-heavy combo lighting may be more useful. For most general trucks and SUVs with only one added front bar, a balanced combo beam is usually the safest first choice.
Use this practical selection table before comparing wattage:
| Driving or work situation | Better beam choice | Why it fits |
|---|---|---|
| Fast open trail or desert route | Spot or spot-heavy combo | More distance gives more reaction time |
| Mixed trail driving | Combo | Covers center distance and side terrain together |
| Slow rock crawling | Flood or flood-heavy combo | Side visibility and close obstacles matter more |
| Campsite, work site, loading area | Flood | Wide area lighting is more useful than throw |
| Rear reverse or trailer hookup light | Flood | The task happens close to the vehicle |
| One light bar for a retail-friendly truck build | Combo | Easier to recommend for broad use cases |
If the next step is comparing actual hardware, the related off-road LED light bar product range is the natural place to look at sizes, housings, and accessory configurations after the beam-pattern decision is clear.
Vehicle type also matters. A roof-mounted 50-inch combo bar can look impressive, but a smaller bumper-mounted bar plus side floods may give more usable visibility with less glare. Electrical capacity should be checked too: harness quality, relay rating, fuse protection, wire routing, waterproof connectors, and charging-system capacity all affect long-term reliability.

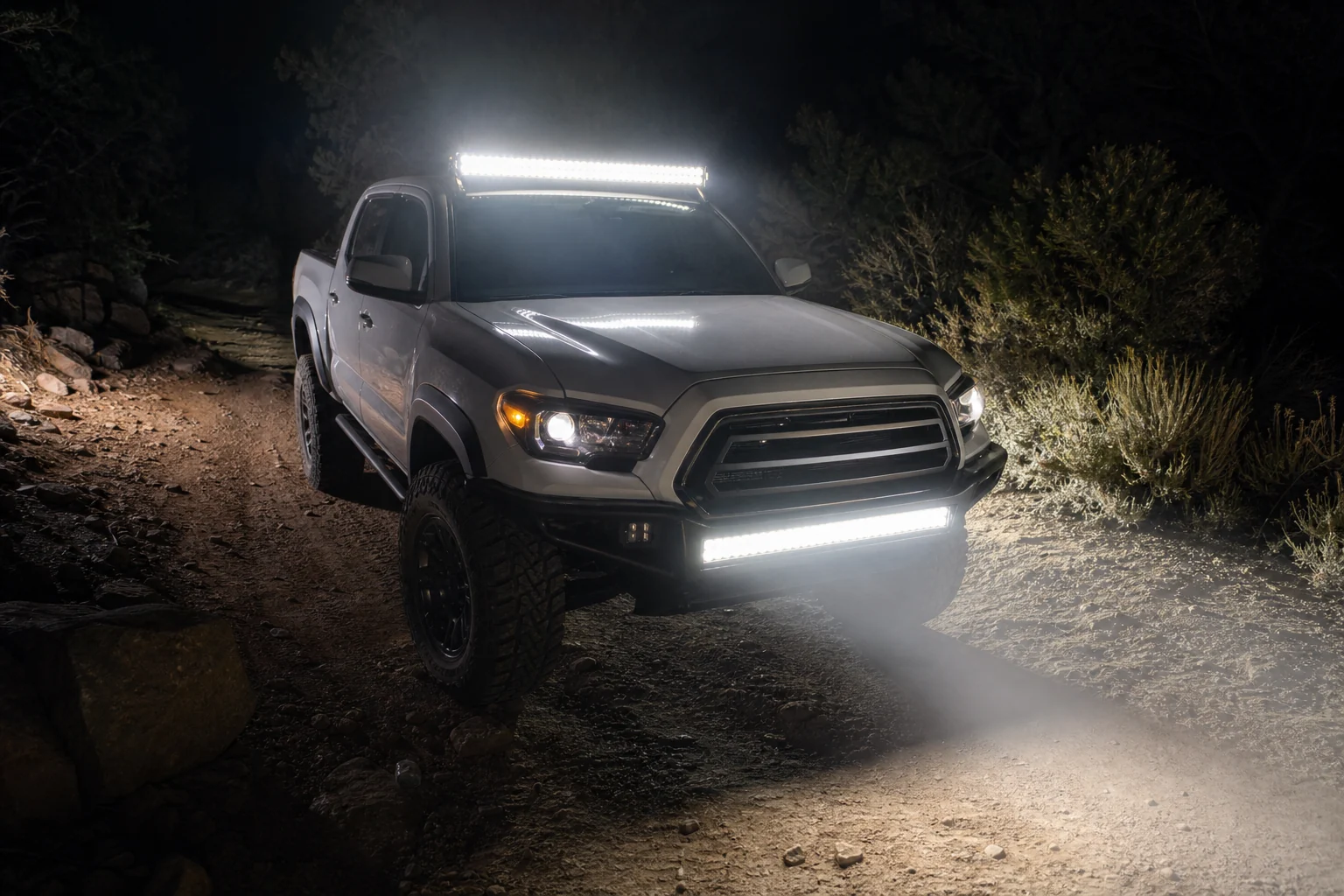

Does mounting position change which beam pattern works best?
Mounting position changes beam performance because the same light behaves differently on a bumper, grille, roof rack, A-pillar, rear rack, or work bracket. The higher and wider the mount, the more carefully the buyer must think about glare, aim, shadows, and reflected light.
Bumper and grille mounts are popular for forward driving because they keep the light lower and closer to the factory headlamp axis. This can reduce hood glare and make a spot or combo bar easier to aim.
Roof mounts can provide a wide view and help light beyond dips or obstacles, but they can also reflect off the hood, dust, rain, snow, or windshield edge. A flood-heavy roof bar may look spectacular from outside the vehicle and frustrating from the driver’s seat. If a roof bar is used, aiming and beam control become especially important.
A-pillar or ditch lights are often used to fill the side zones that a spot bar misses, while rear mounts usually favor flood patterns for reverse, loading, and work lighting. Both need careful aiming so the useful light does not become distracting spill.
Mounting security is more than convenience. Regulations for commercial motor vehicles require auxiliary driving lamps and front fog lamps to be mounted so the beams are aimable and the mounting prevents aim from being disturbed while the vehicle operates on public roads 1. Even outside commercial use, that principle is practical: a loose bracket can turn a well-designed beam into uncontrolled glare.

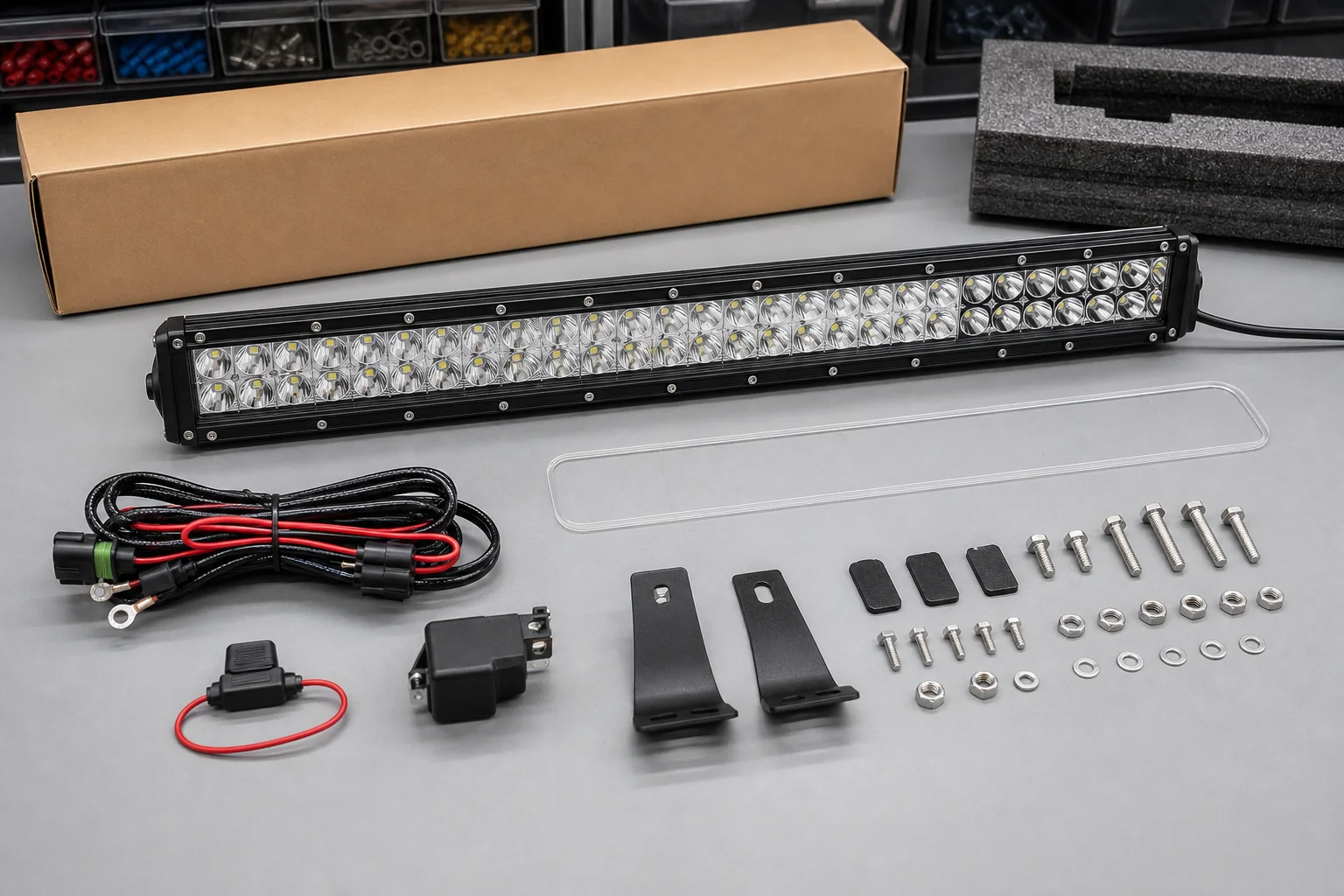

What should buyers check beyond spot, flood, or combo?
Buyers should check optic quality, housing durability, sealing, heat control, wiring, brackets, packaging, and batch consistency before trusting any beam-pattern claim. Beam labels are useful only when the product can deliver that pattern repeatedly.
Optics come first. Reflector depth, lens shape, LED placement, and surface finish all affect the beam. A bar with fewer LEDs and better optical control may outperform a brighter bar that scatters light into glare.
Sealing is next. Off-road lights face water, mud, dust, pressure washing, temperature swings, and vibration. Buyers should look at IP ratings, lens sealing, breather design, connector quality, and whether the housing can manage heat without cooking the LEDs or driver circuit. Heat control matters because LED output and lifespan suffer when thermal design is weak.
The harness and bracket system deserve the same attention as the bar itself. Thin wiring, weak hardware, vague instructions, or poor packaging can create returns even if the lamp looks good in a test photo.
This is where Yirox Team product evaluation is practical rather than decorative. Sample checks should include beam appearance, bracket fit, connector quality, label consistency, carton protection, and whether the delivered batch matches the approved sample. Buyers building a broader accessory line can also review related branded automotive and NEV accessories to plan packaging, branding, and fitment expectations customers will actually see.
For public-road use, do not assume an off-road light bar is legal just because it is bright or professionally packaged. Many auxiliary lamps are intended for off-road use only, and responsible off-highway use includes respecting trail rules, other drivers, nearby communities, and land-management guidance 5.
The final check is customer honesty. Spot is not flood, flood is not fog, and combo is not magic. Clear beam descriptions reduce wrong purchases, installation complaints, and unsafe use.
Conclusion: Match the beam to the job before chasing more lumens
Spot, flood, and combo LED light bars are different tools. A spot beam reaches farther down the trail, a flood beam spreads light across nearby areas, and a combo beam gives a balanced mix for drivers who want one main auxiliary bar. The best choice depends on terrain, speed, mounting position, wiring, and whether the vehicle needs distance, width, or both.
For most general off-road builds, a quality combo bar is a sensible starting point. For faster open routes, a dedicated spot or spot-heavy setup can give better reaction distance. For slow trails, recovery, reverse lighting, and work areas, flood lighting is often more useful than raw forward throw.
The smartest buyers look past the label. They check beam control, glare, bracket stability, sealing, heat management, wiring, packaging, and batch consistency. That is especially important for retailers, installers, and distributors because a light bar does not succeed in a catalog; it succeeds after it is mounted, aimed, wired, used, washed, and used again.
Frequently Asked Questions
Which is better, spot or flood LED light bar?
Neither is better for every job. A spot LED light bar is better for long-distance forward visibility, while a flood LED light bar is better for wide close-range lighting around trails, worksites, campsites, or reverse areas.
Is a combo beam LED light bar good for off-roading?
Yes, a combo beam LED light bar is a good choice for many off-road vehicles because it combines forward reach with side spread. It is especially useful when the driver wants one main light bar for mixed terrain instead of separate spot and flood lights.
Can I use a flood light bar as a fog light?
You should not assume a flood light bar is a legal or effective fog light. A real fog lamp pattern is designed and aimed differently, while many flood light bars are meant for off-road, work, or scene lighting.
Why does my LED light bar look bright but not shine far?
It may have a wide flood pattern, weak optics, poor aiming, or inflated lumen claims. Bright foreground light can look impressive near the vehicle while still failing to project enough useful intensity farther down the trail.
Where should a combo LED light bar be mounted?
A combo LED light bar is commonly mounted on the bumper, grille, bull bar, or roof rack. Bumper and grille mounts usually reduce hood glare, while roof mounts need more careful aiming because they can reflect light from the hood, dust, rain, or snow.
Do more lumens mean a better LED light bar?
No. Lumens describe total light output, but beam pattern and optic control decide how much of that light becomes useful visibility. A lower-lumen bar with better optics can outperform a brighter bar that scatters light into glare.
What beam pattern should I choose if I only install one light bar?
For one front light bar, a good combo beam is usually the most practical choice. It gives more balanced coverage than a pure spot or pure flood beam, especially for drivers who use the same vehicle across different trails and speeds.
References
[1] U.S. Electronic Code of Federal Regulations. (2026). *49 CFR 393.24 Requirements for head lamps, auxiliary driving lamps and front fog lamps*. [https://www.ecfr.gov/current/title-49/section-393.24]
[2] National Highway Traffic Safety Administration. (2019). *FMVSS No. 108 interpretation on supplemental beam auxiliary lighting*. [https://www.nhtsa.gov/interpretations/571108-supplement-beam-boykin-16-0884]
[3] SAE International. (2020). *SAE J581: Auxiliary Upper Beam Lamps*.[https://www.sae.org/standards/content/j581_202009/]
[4] SAE International. (2020). *SAE J583: Front Fog Lamp*. [https://www.sae.org/standards/content/j583_202009/]
[5] U.S. Forest Service. (2026). *Responsible Off-Highway Vehicle Use*. [https://www.fs.usda.gov/visit/know-before-you-go/off-highway-vehicle-use]
