Alloy vs Steel Wheels: Weight, Strength, Cost and Which to Stock

Alloy wheels are cast or forged from aluminum alloy; steel wheels are pressed from sheet steel and welded. In the alloy vs steel wheels choice, alloy is usually lighter, more styled and better at shedding brake heat, while steel is usually cheaper, bends instead of cracking and is easier to repair. Which to stock depends on the season, the vehicle and the sales channel.

Scope: this guide compares the two wheel materials and helps shops and distributors decide what to stock. Wheel offset is explained in What Is Wheel Offset?, and balancing weights for steel rims are covered in wheel weights for steel wheels.

What is the difference between alloy and steel wheels?

Alloy wheels are wheels cast, flow-formed or forged from aluminum alloy, while steel wheels are pressed and welded from steel sheet. The difference starts with the material and the way each wheel is made, and that drives everything else: weight, strength, cost, looks and repair. The table puts the main points side by side for a typical passenger-car or light-truck wheel of the same size.

One naming point clears up a lot of confusion. “Alloy” on a wheel almost always means aluminum alloy. Steel itself is technically an alloy of iron and carbon, but in the wheel trade “steel wheel” and “alloy wheel” are the two standard terms. Chrome is a finish, not a material: there are chrome-plated steel wheels and chrome-finished alloy wheels.

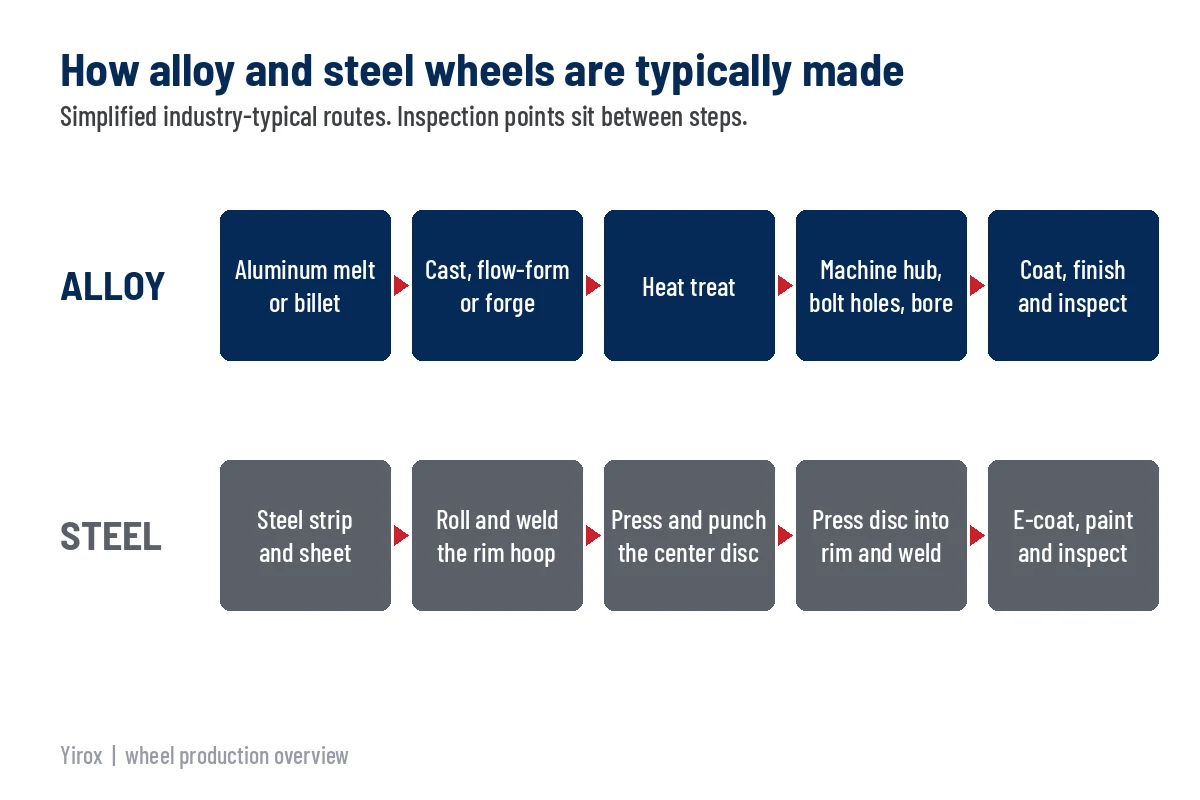

How are alloy and steel wheels made?

Alloy wheels are formed from molten or heated aluminum in one main piece, while steel wheels are assembled from pressed steel parts. The process explains a lot about the cost and the strength differences that come later.

Typical production for alloy wheels involves one of three routes:

• Casting: molten aluminum is poured or pushed into a mold. Low-pressure casting is the common route for volume aftermarket and OEM wheels; gravity casting is simpler and used on some lower-cost designs.
• Flow forming: a cast blank is spun and pressed with rollers to stretch and thin the rim barrel. The barrel ends up denser and thinner than a standard cast barrel.
• Forging: a solid aluminum billet is pressed into shape under very high force, then machined. Forged wheels are usually the lightest and most expensive.

After forming, alloy wheels are heat-treated (on most routes), machined at the hub face, bolt holes and center bore, then painted, powder-coated, machined on the face or otherwise finished.

Typical production for steel wheels involves rolling a strip of steel into a hoop and welding it, then roll-forming it into the rim profile. A separate center disc is pressed from sheet steel, with the bolt holes and center bore punched. The disc is pressed into the rim and welded, then the wheel is coated, often by electrocoating and paint.

These routes explain the trade-offs. Steel wheel tooling turns out large volumes of one plain design at low cost per wheel. Alloy routes allow far more design freedom, but each wheel takes more machining and finishing time, and each new design needs its own mold.

Are alloy wheels lighter, and does it matter?

For the same diameter and width, an alloy wheel is usually lighter than a steel wheel, but not always. A large-diameter, heavily styled cast alloy can weigh as much as or more than a simple steel wheel. Compare the published weight of the actual SKUs, not the material.

Wheel weight matters in two ways. It is unsprung mass, which the suspension has to control over bumps, and it is rotating mass, which the engine or motor has to spin up and the brakes have to slow down. Lighter wheels help ride and response on both counts.

The fuel economy effect is real but small, because wheels are a small share of total vehicle weight. The U.S. Department of Energy states that a 10% reduction in vehicle weight can result in a 6% to 8% fuel economy improvement [1]. Here is a worked, hypothetical example using that ratio:

How we put this together: the table is our own calculation using the DOE ratio [1]. The vehicle and wheel weights are illustrative, not measured values for any product. Rotating mass can make the real-world effect slightly larger than a static weight calculation suggests, and tire choice usually matters more.

The takeaway for buyers: weight is a good reason to choose alloy for ride and response, but a weak reason on fuel cost alone. For electric vehicles, where efficiency and range are closely watched, the same logic applies, and aerodynamic wheel design also plays a part.

Which is stronger, steel or alloy?

Neither is simply “stronger”; they fail differently. Steel wheels tend to bend and dent on a hard impact, while alloy wheels are stiffer and can crack, especially cast designs. A properly engineered wheel of either material is strong enough for the load it is rated for.

Test standards reflect the difference. UN Regulation No. 124, which covers replacement wheels for passenger cars in the markets that apply it, requires steel disc wheels to pass a rotating bending test and a rolling test, while one-piece aluminum alloy wheels must also pass a corrosion test and an impact test [3]. In the United States, aftermarket wheels are commonly validated to SAE J2530, which sets performance, sampling, test and marking requirements for aftermarket wheels on passenger cars, light trucks and multipurpose vehicles [2].

In daily use, strength shows up as three questions:

1. Will it survive a pothole? Both can, if the wheel and tire are rated for the vehicle. Low-profile tires on large alloys give the rim less protection than taller tires on steel wheels.
2. What happens when it is damaged? A bent steel rim often still holds air and can be straightened. A cracked alloy wheel should be taken out of service.
3. Can it carry the load? This depends on the wheel’s load rating, not on the material. Always check the rating against the vehicle’s axle load.

Which costs more over the life of the wheel?

Alloy wheels usually cost more to buy, and steel wheels usually cost less to own in harsh conditions. The full picture includes the extra parts and services each wheel needs, which is where buyers often get caught.

For a retail customer, the deciding cost is usually the purchase price. For a fleet or a winter-tire program, replacement and repair cost often decide it, which is why steel wheels stay common there. Balancing weights are a small line, but the type changes with the wheel, as our guides to clip-on weights for steel wheels and stick-on weights for alloy wheels explain.

Which is better for winter, off-road and towing?

Steel is the common choice for dedicated winter sets and for rough work, alloy is the common choice for year-round use and upgrades, and for towing the load rating matters more than the material. The table summarizes the usual reasoning.

In winter, the real issue is road salt and slush. Steel wheels rust where the coating chips, but they are cheap enough to repaint or replace. Alloy wheels do not rust like steel, but salt can attack the metal under chipped or damaged coating, so coating quality and regular washing matter.

Two steel styles sell beyond the basic winter set. Black steel wheels with a durable powder or e-coat finish give a plain, rugged look that pairs with black trim and wheel covers, and they hide brake dust well. Off-road steel wheels, usually in 15 to 17 inch truck and SUV fitments, appeal to buyers who value a wheel that can be hammered back into shape on the trail; check the load rating and offset for lifted vehicles with larger tires.

Do alloy wheels improve handling and braking?

Lighter alloy wheels can improve steering response and ride a little, and aluminum conducts heat better than steel, which helps carry brake heat away. On most daily-driven cars, though, the difference is small compared with the effect of tires.

Two other factors are often confused with the material. Larger alloy wheels usually come with lower-profile tires, which sharpen steering but make the ride firmer and the rim easier to damage. And open spoke designs leave more space for larger brake calipers, which is a design benefit, not a material one.

For a buyer stocking wheels, the honest summary is that alloy offers a modest performance gain plus a large styling gain, while steel offers durability and low cost. Neither material makes an unsuitable tire or a poor fitment work.

What changes when you switch from steel to alloy?

Switching material usually changes more than the wheel. Treat a steel-to-alloy swap, or the reverse, as a fitment job, and check each item below before the customer drives away.

• Lug nuts or bolts: alloy and steel wheels can use different seat shapes (conical, ball or flat) and different stud engagement lengths. Use the fasteners specified for the new wheel.
• Center bore and hub rings: aftermarket alloys often have a larger center bore than the hub and need a hub-centric ring. Steel wheels for the vehicle usually fit the hub directly.
• Offset and width: a new wheel may sit further in or out. Check clearance using the offset method in What Is Wheel Offset?
• Brake clearance: some steel wheels for small cars do not clear larger brake calipers, and some alloy spoke designs sit close to calipers.
• Tire pressure sensors: FMVSS No. 138 requires a tire pressure monitoring system on passenger cars, multipurpose vehicles, trucks and buses with a gross vehicle weight rating of 4,536 kg (10,000 lb) or less, apart from vehicles with dual wheels on an axle [4]. A second wheel set needs its own compatible sensors or a sensor transfer.
• Balancing weights: clip-on weights for steel rim flanges and adhesive weights for alloy barrels are different products; see the wheel balance weights guide.
• Styling parts: steel wheels may need wheel covers; alloys need the right wheel center caps.

Which should a shop or distributor stock?

Stock steel wheels where buyers want low cost and durability, and alloy wheels where buyers want looks and an upgrade. Most wheel businesses carry both, weighted by their channel and climate.

A practical check before adding a SKU: can you state its size, bolt pattern, center bore, offset, load rating and weight on one line? If the supplier cannot give all six, the listing will produce fitment questions and returns. Our alloy wheels range is a starting point for the alloy side of that list.

What are the risks and exceptions?

The biggest risks come from assuming a material guarantees a property. Weight, strength and cost all depend on the specific wheel, and market rules differ.

• Heavy alloys: some large or heavily styled cast alloys are not lighter than steel. Always compare published weights.
• Cracked alloys: whether structural repair of a cracked alloy wheel is acceptable depends on the wheel maker and local rules; many shops will not repair cracks.
• Replica and replacement wheels: in markets that apply UN Regulation No. 124, replica and pattern-part replacement wheels must pass the tests listed for their material [3]. Check approval requirements in each destination market before you import.
• Load and fitment: a wheel’s load rating, bolt pattern, center bore, offset and seat type must all match. Material does not change these rules.
• Magnesium wheels: some specialty “alloy” wheels are magnesium, which has different corrosion and care needs from aluminum.
• Coatings: both materials depend on their coating. Chips from tire tools, curb contact and wheel weights left on too long are the usual starting points for corrosion.

What should a wheel RFQ specify?

A wheel RFQ should state the fitment data, the construction and the finish, so the supplier quotes the same wheel you will receive. Missing data is the main cause of samples that fail fit checks.

1. Target vehicles or hub data: bolt pattern, center bore, stud size and seat type.
2. Wheel size: diameter, width and offset, plus any backspacing limits.
3. Construction: steel, cast alloy, flow-formed or forged.
4. Load rating required per wheel and the target market’s approval or marking needs, such as SAE J2530 testing in the United States or UN R124 approval where it applies [2][3].
5. Finish and color, with a physical sample or a color reference.
6. TPMS compatibility and valve hole type.
7. Accessories: center caps or covers, lug nuts, hub rings and balancing weights.
8. Packaging and labeling: face protectors, carton strength, barcodes.
9. Quantities by SKU and the planned reorder pattern.

Conclusion

Alloy and steel wheels solve different problems. Alloy wheels are usually lighter, more varied in design and better at moving brake heat, which makes them the default for most new cars and upgrades. Steel wheels cost less, bend rather than crack and are easy to repair or replace, which keeps them in winter programs, fleets, vans and spares.

The material is only the starting point. Weight, strength and fit depend on the specific wheel, so the right decision comes from the spec sheet: size, bolt pattern, center bore, offset, load rating and weight. A shop or distributor that stocks by channel and climate, and checks every switch as a fitment job, gets the benefits of both materials without the returns.

Next step

List your top-selling vehicles and their hub data, then decide which ones need steel winter or fleet wheels and which need alloy upgrades. That list becomes your first stocking plan.

Yirox makes both alloy and steel wheels, along with the steel-wheel accessories covered here, such as wheel covers and clip-on balancing weights, so a mixed alloy and steel winter-wheel program can be quoted as one project. Send your vehicle list and hub data through our sourcing solutions page, or see the wheels and tire accessories range.

Frequently asked questions

Are alloy wheels better than steel wheels?

Not in every case. Alloy wheels are usually lighter and more styled, while steel wheels are cheaper, bend instead of cracking and are easier to repair, so the better choice depends on use and budget.

Are steel wheels heavier than alloy wheels?

Usually, for the same size. Some large or heavily styled cast alloys weigh as much as steel, so compare the published weight of each wheel.

Do alloy wheels improve fuel economy?

Slightly. DOE says a 10% cut in vehicle weight can improve fuel economy by 6% to 8%, and lighter wheels are only a small share of vehicle weight, so the gain is usually well under 1%.

Are steel wheels better for winter?

They are the common choice for dedicated winter sets because they are cheap and salt or curb damage costs less. Winter-rated alloys with a durable coating also work well.

Can I put alloy wheels on a car that came with steel wheels?

Usually, if the bolt pattern, center bore, offset, load rating and brake clearance match. You may also need different lug nuts, hub rings and TPMS sensors.

What are the downsides of steel rims?

Steel rims are heavier, rust where the coating chips, and offer few styling options, so many owners add wheel covers. They also cost less and are easy to straighten, which is why fleets and winter sets keep them.

What are the disadvantages of alloy wheels?

Alloy wheels usually cost more, can crack on a severe impact, and cost more to repair or refinish. Curb rash and coating damage are common cosmetic problems.

Aluminum vs steel wheels: which is better?

“Aluminum vs steel wheels” is the same comparison as alloy vs steel, since alloy wheels are aluminum alloy. Aluminum suits weight and styling; steel suits low cost, winter sets and rough use.

Do alloy wheels crack more easily than steel?

Alloy wheels are more likely to crack on a severe impact, especially cast designs, while steel wheels tend to bend. A cracked wheel should be taken out of service.
