Injection molding, painting, chrome plating, inspection, 3D scanning, mold making and CNC machining in one IATF 16949 certified factory. Yirox runs about 20,000 m² of production in Wuxi, China, and manages partner factories for processes we do not run in-house.
Five in-house processes under one IATF 16949 roof. Open a capability to see the equipment, tolerances and checks behind it, so you can judge whether we fit your part before you send a drawing.
42 machines from 90 to 2,500 t, including two-shot molding and robots on every machine.
Explore automotive injection molding →
Two paint lines with a 3C2B system, clean-room booths and measured color and gloss.
Explore automotive plastic painting →
Automatic 28-tank rack plating line for decorative chrome on plating-grade ABS.
Explore chrome plating on plastic →
Two CMMs, FAI, checking fixtures, appearance instruments and PPAP up to Level 3.
Explore CMM inspection and PPAP →
Handheld 3D scanning, scan-to-CAD and deviation maps.
Explore 3D scanning and reverse engineering →
In-house mold shop, DFM and sample approval.

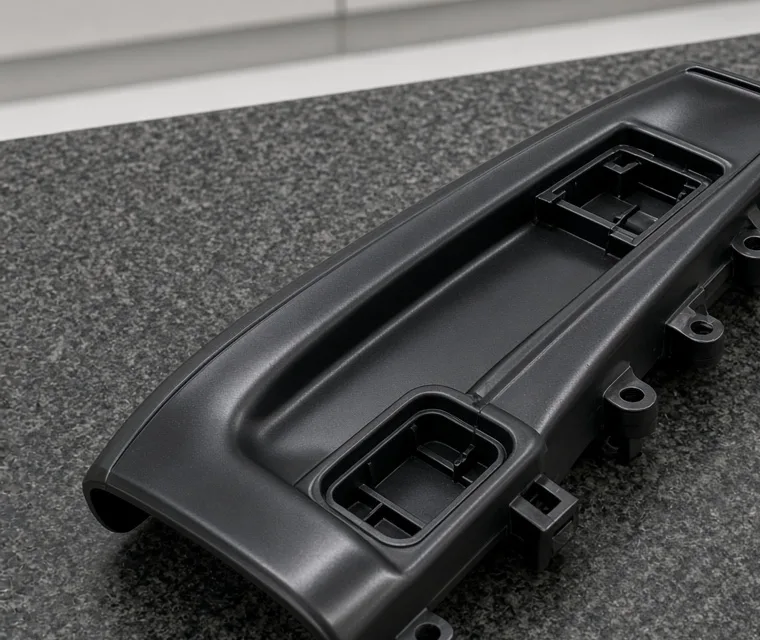

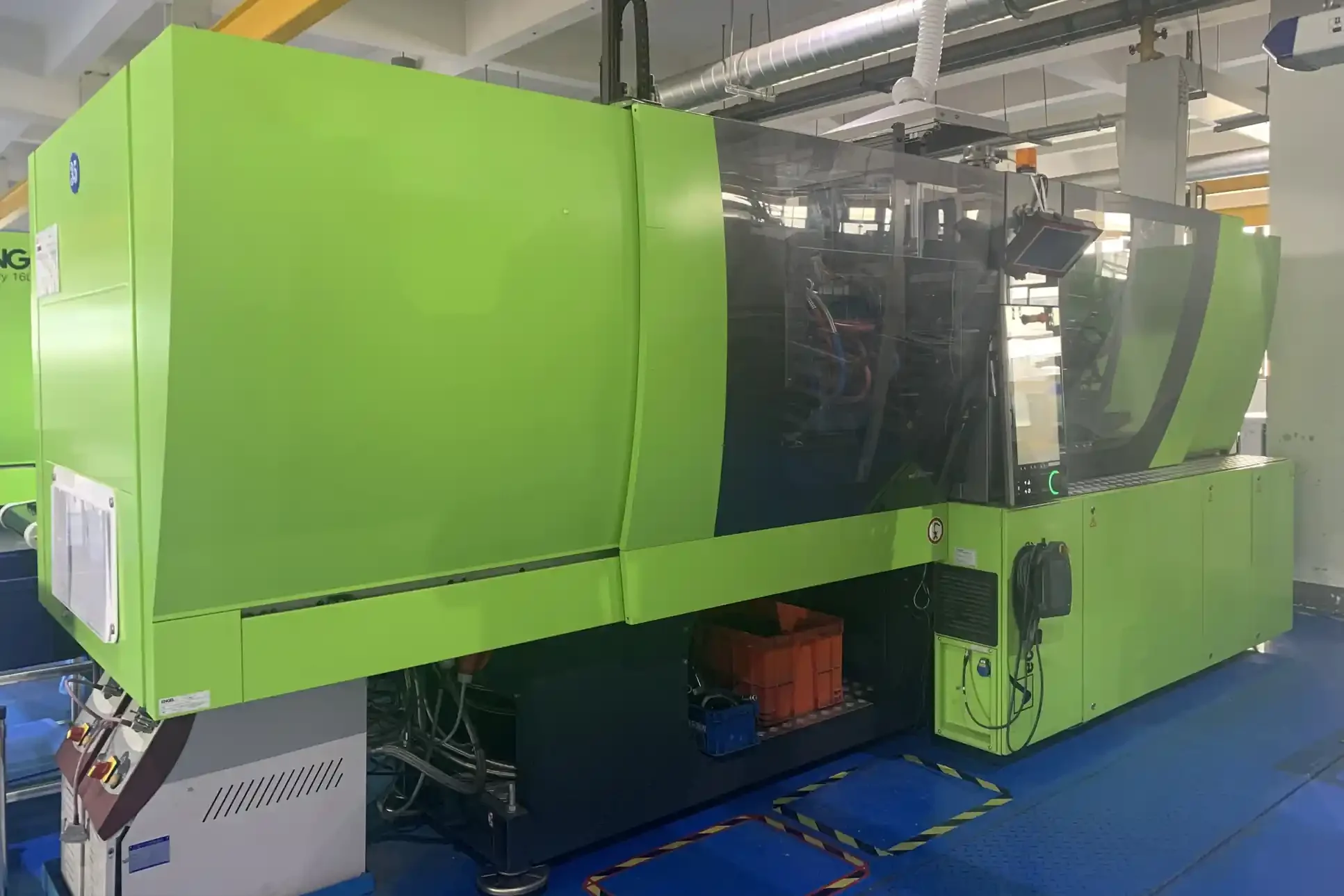

Explore automotive mold tooling →The core of our factory. 42 machines from 90 to 2,500 t mold everything from clips and brackets to bumper trim and large rear spoilers. Three two-shot machines combine hard and soft materials, and every machine has a take-out robot. Read more about automotive plastic injection molding.

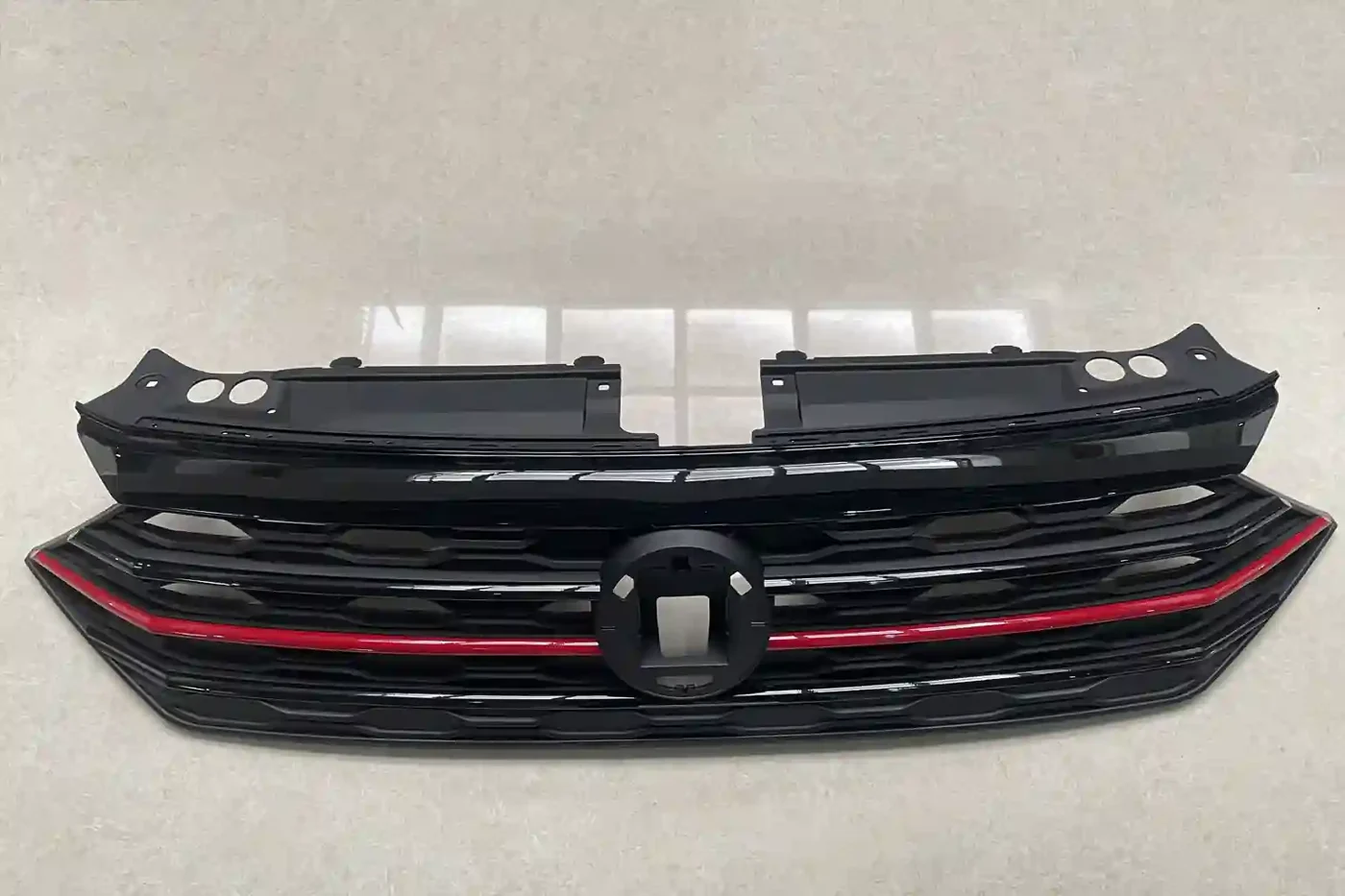

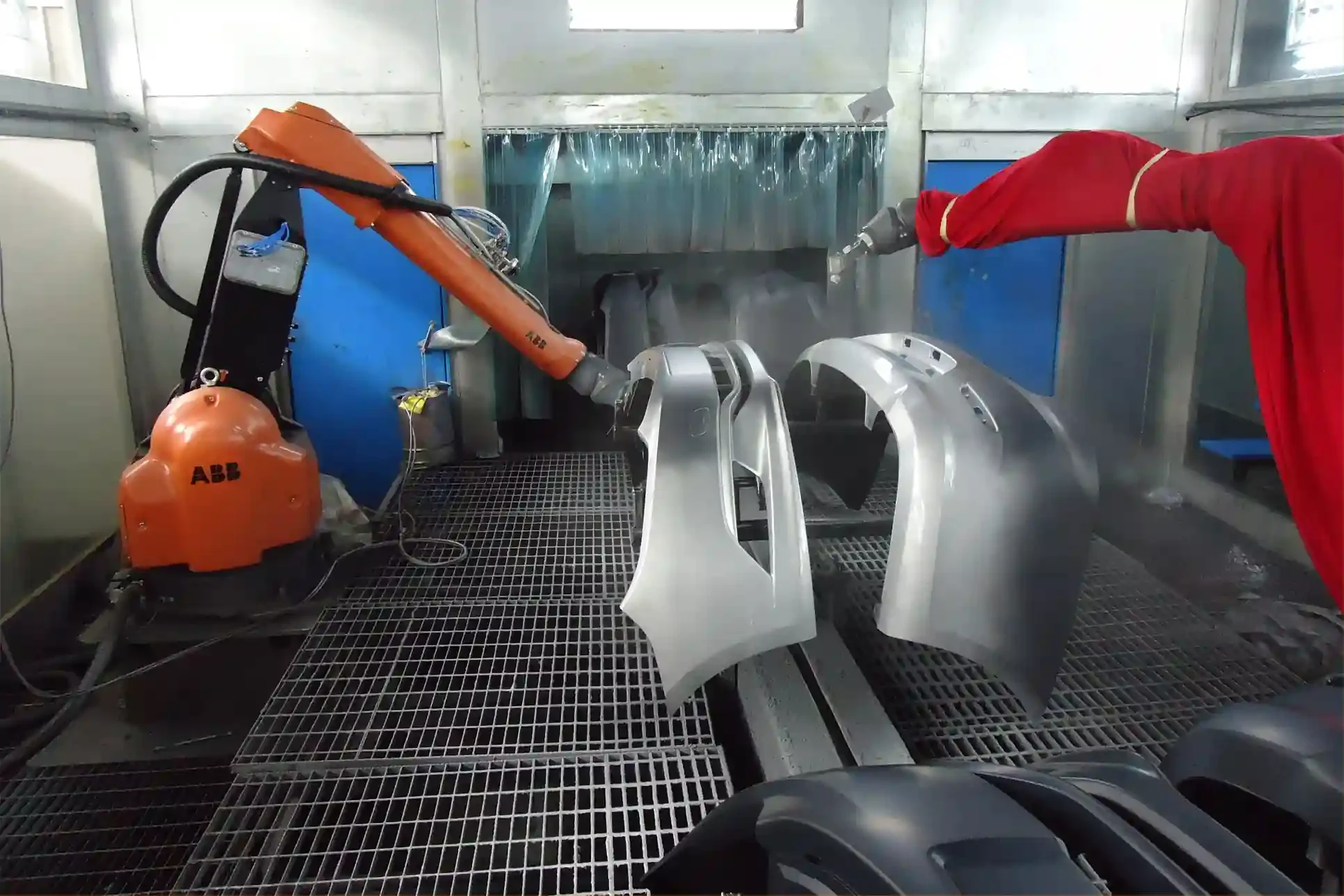

Two paint lines apply a 3C2B system in clean-room booths, with UV clearcoat as an option. We paint gloss black, body color and matte finishes, and we measure color, gloss, film thickness and adhesion. Unpainted parts get molded-in textures. See painting and surface finishing.

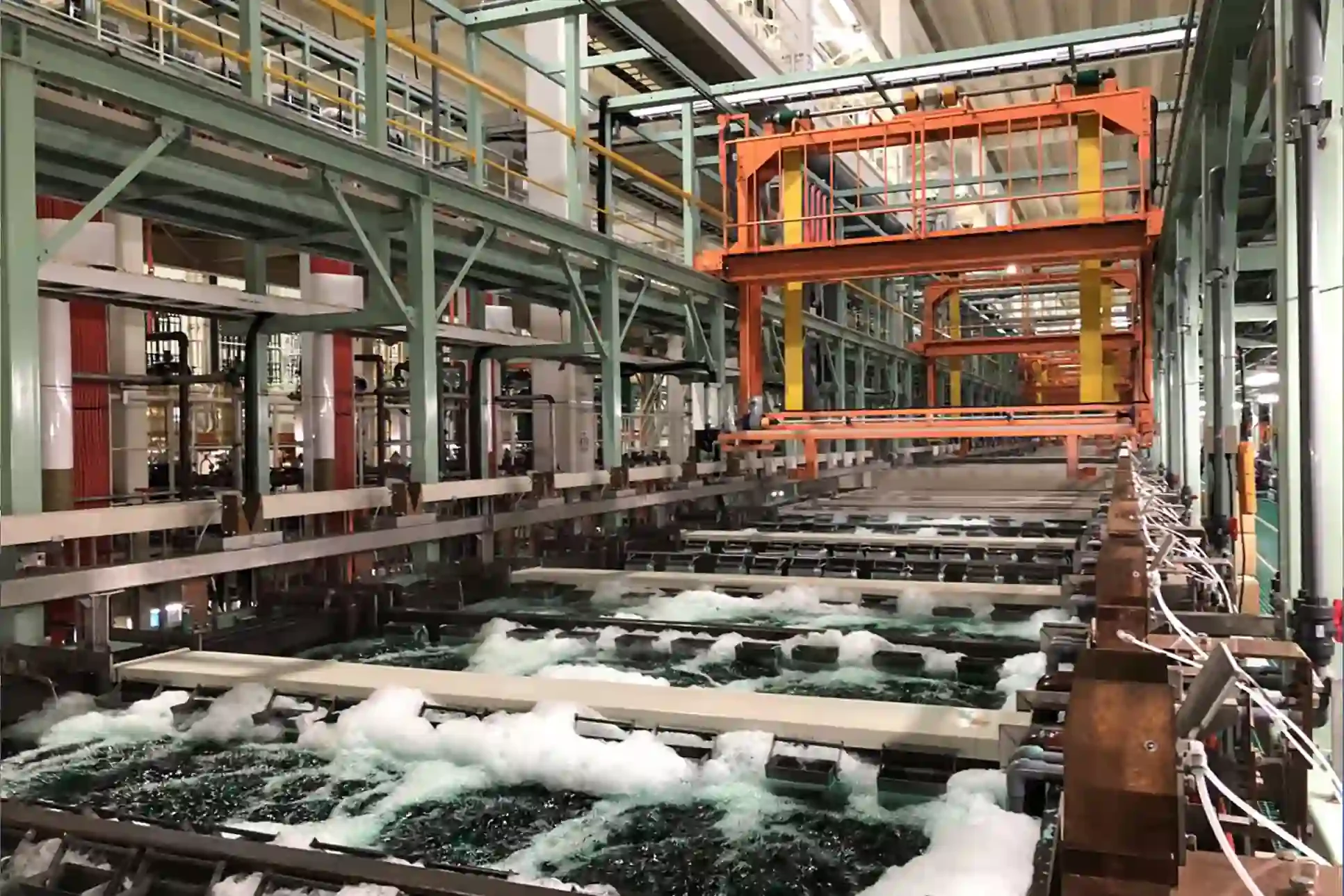

Our automatic gantry rack line has 28 tanks and plates copper, nickel and chrome onto plating-grade ABS. Trivalent chrome is standard and parts are tested to CASS 48 h. See chrome plating on plastic.

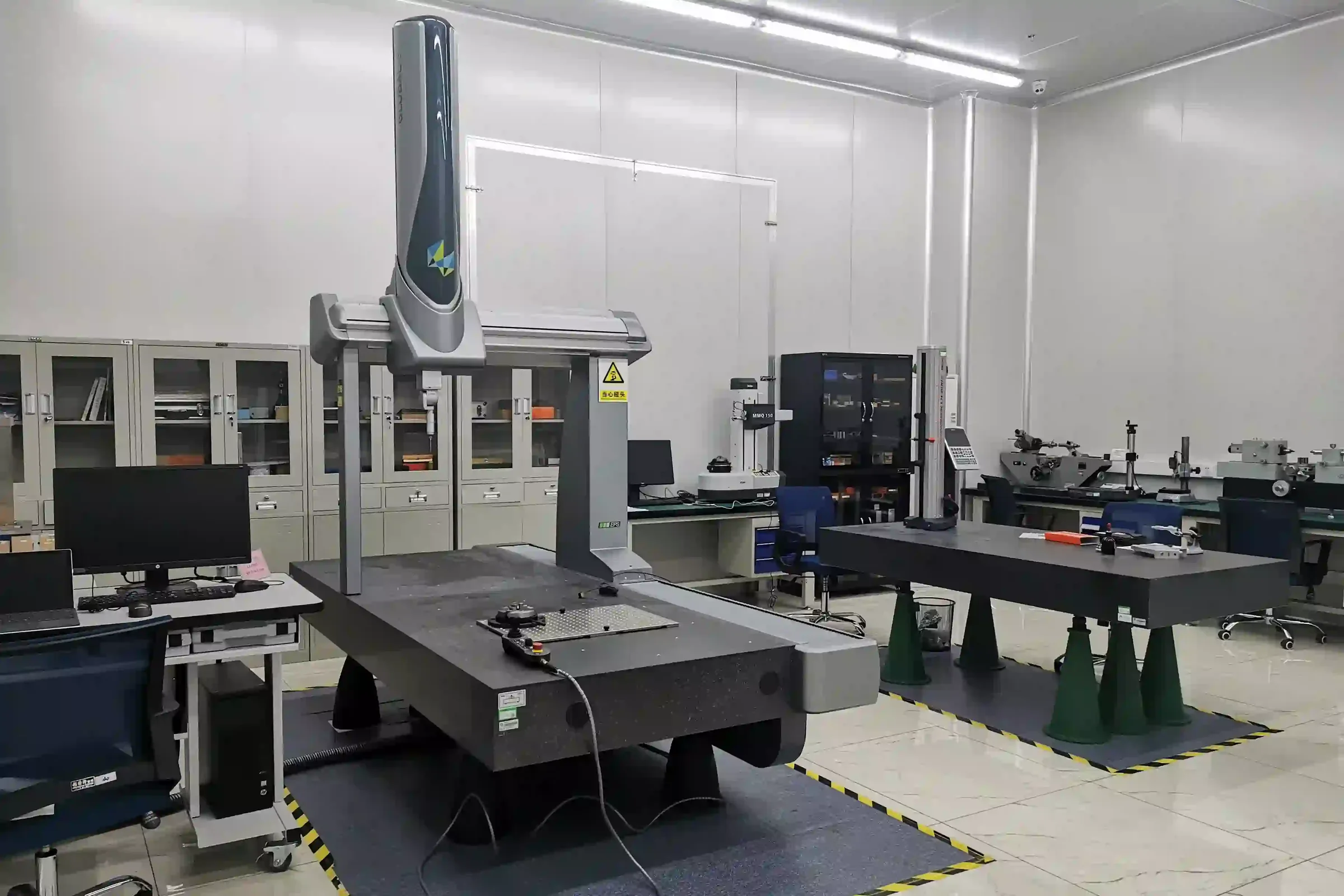

Two CMMs, checking fixtures, a spectrophotometer, gloss meter and coating thickness gauge support FAI and PPAP up to Level 3. Weathering and corrosion tests are done at SGS and CTI. See quality inspection and CMM.

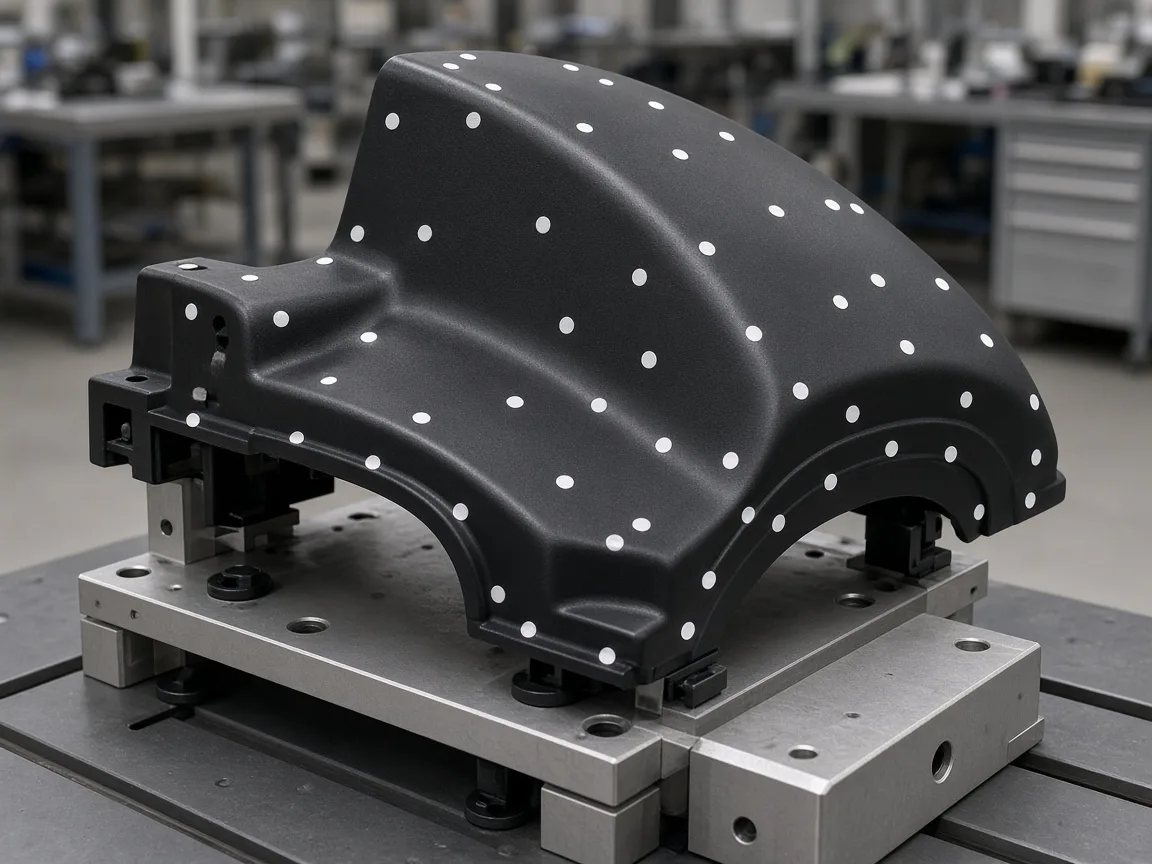

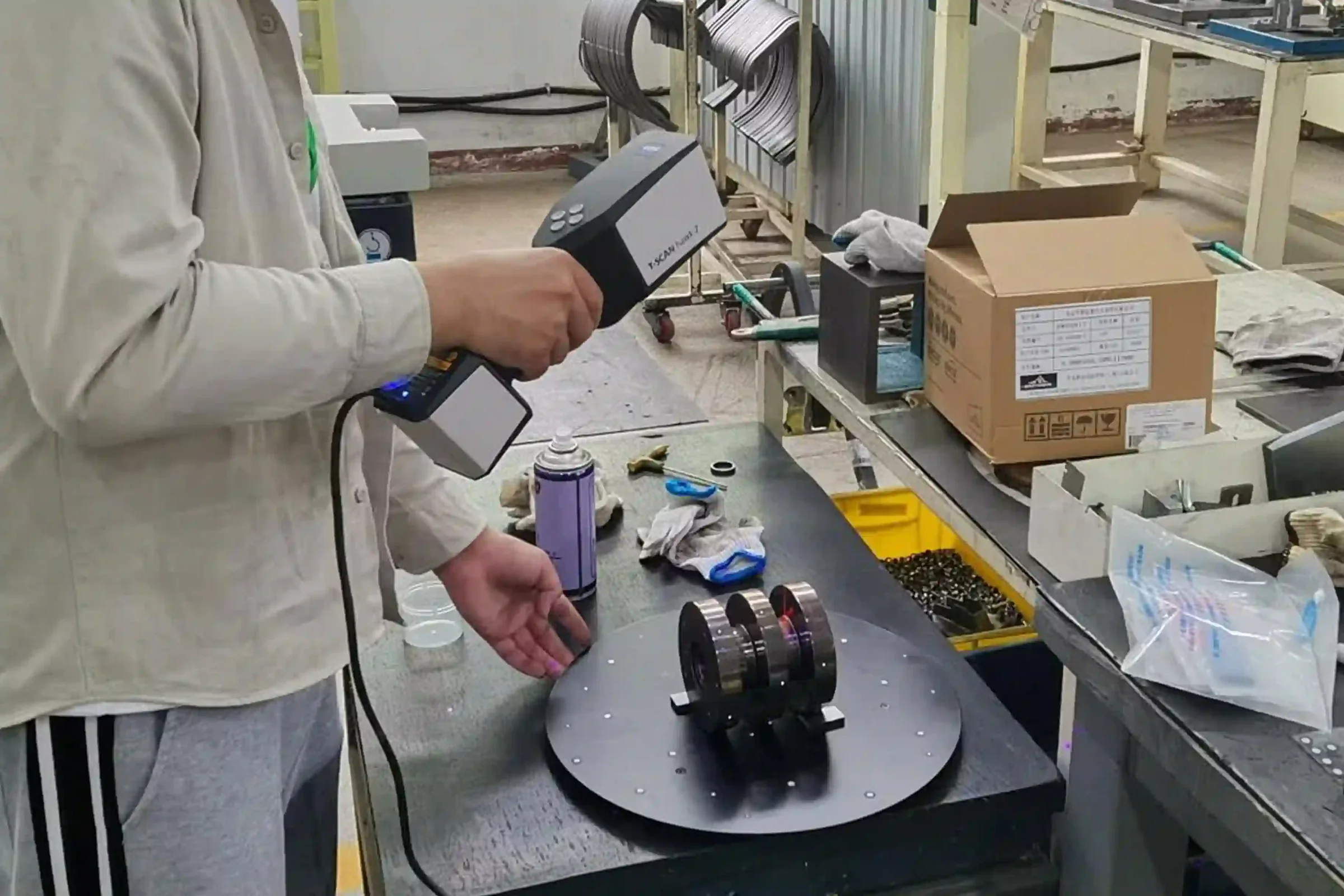

A handheld blue laser and infrared scanner captures parts and vehicles at 0.04 mm accuracy. We deliver mesh, reverse-engineered CAD and deviation color maps. See 3D scanning and reverse engineering.
Our mold shop builds 6–8 molds a month in P20 and H13 steel and maintains every mold we run. See tooling and sampling.
| Capability | In-house equipment |
|---|---|
| Injection molding | 42 machines, 90–2,500 t; 3 two-shot machines; robots on all machines |
| Painting | 2 lines (24-station rotary automatic line; overhead conveyor line); 3C2B; ISO 8 booths |
| Chrome plating | 1 automatic gantry rack line, 28 tanks; trivalent chrome standard |
| Inspection | 2 CMMs; spectrophotometer; gloss meter; coating thickness gauge; 2.5D vision measuring machine |
| 3D scanning | Handheld scanner, 0.04 mm accuracy |
| Mold shop | 6–8 molds per month, molds up to 25 t |
| CNC and EDM | 4 machining centers, 2 CNC lathes, 2 engraving-milling, 2 wire EDM, 2 EDM, 2 surface grinders |
| Prototyping | 1 SLA printer |
| Capacity | About 1.5 million molded parts and 520 t of resin per month |
In short: a part moves from DFM review and mold making to molding, finishing, inspection and packing inside one factory, so one supplier is accountable for every step.
Because every main step is in one factory, problems found in painting or inspection go straight back to the molding and mold teams. You deal with one supplier and one set of documents.
DFM review, 3D scanning if needed, and agreement on material, finish and critical features.
Molds built in our mold shop with CNC and EDM support.
Parts molded on the right tonnage machine, with robots and dried resin.
Painting on our 3C2B lines or chrome plating on our rack line.
FAI, CMM, checking fixtures and appearance checks; PPAP up to Level 3.

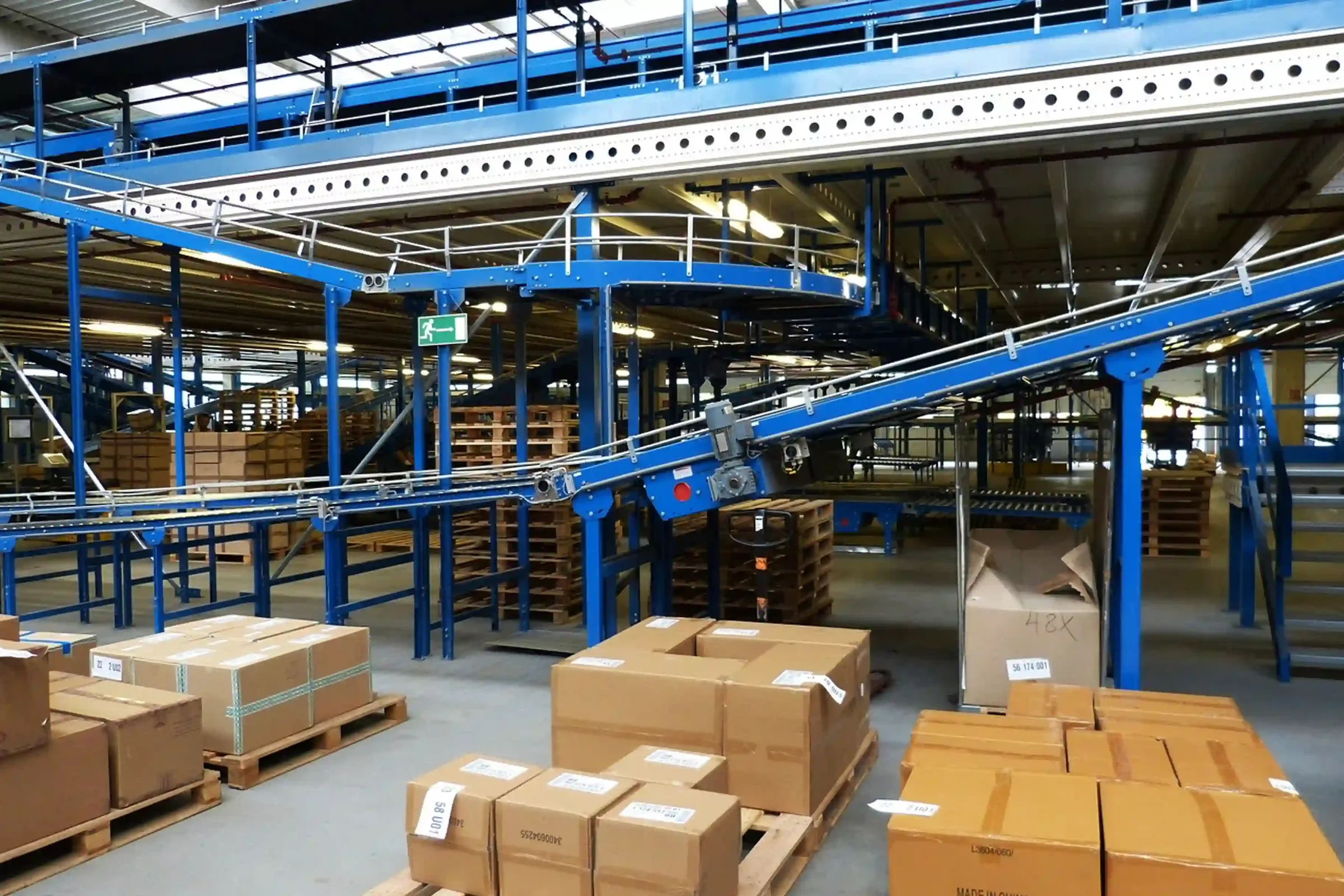

Parts packed for export, retail or warehouse supply.
Have a drawing, scan or sample?Send it with your target quantity and we will review the part for molding, finish and packing before we quote.

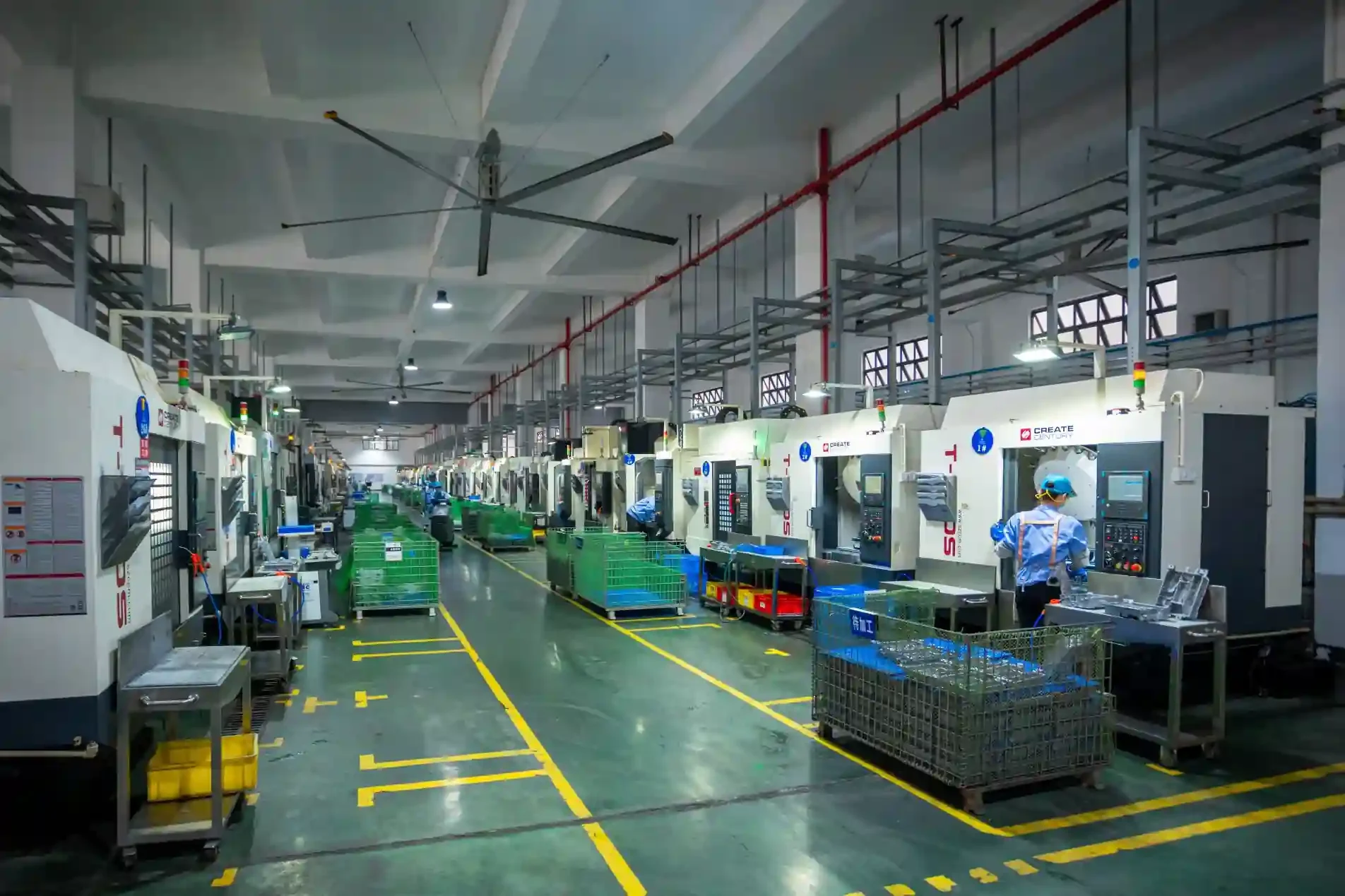

CNC machining at Yirox supports tooling, fixtures and prototypes rather than selling machining time as a job shop. Our machines build and repair molds, make checking fixtures and machine prototype or low-volume parts for exterior programs.
| Equipment | Quantity | Specification |
|---|---|---|
| 3-axis machining centers | 4 | 800×500×500 mm, ±0.01 mm |
| CNC lathes | 2 | φ400×600 mm |
| Engraving-milling machines | 2 | Fine detail and electrodes |
| Wire EDM | 2 | Precision cutting of mold inserts |
| EDM | 2 | Ribs, textures and deep features in molds |
| Surface grinders | 2 | Flat mold plates and inserts |
| SLA 3D printer | 1 | Quick form and fit prototypes |
Our mold shop builds 6–8 molds per month, handles molds up to 25 t and uses P20 and H13 steel, with mold life of 300,000–500,000 shots. Our fixture shop builds checking fixtures validated to MSA %GRR of 10% or less. See tooling and sampling.

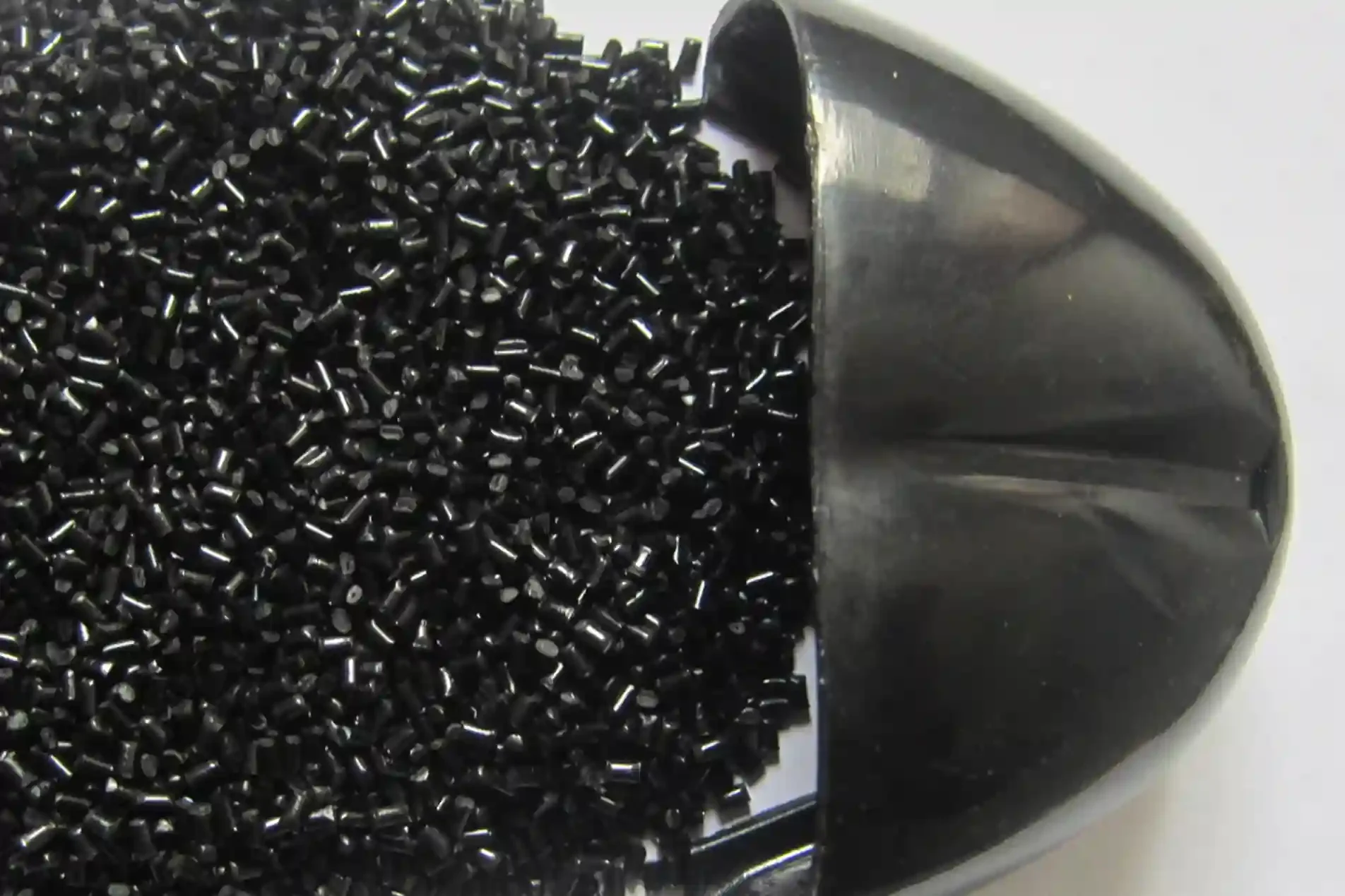

| Material | Typical use |
|---|---|
| ABS | Spoilers, grilles, housings; plating-grade ABS for chrome |

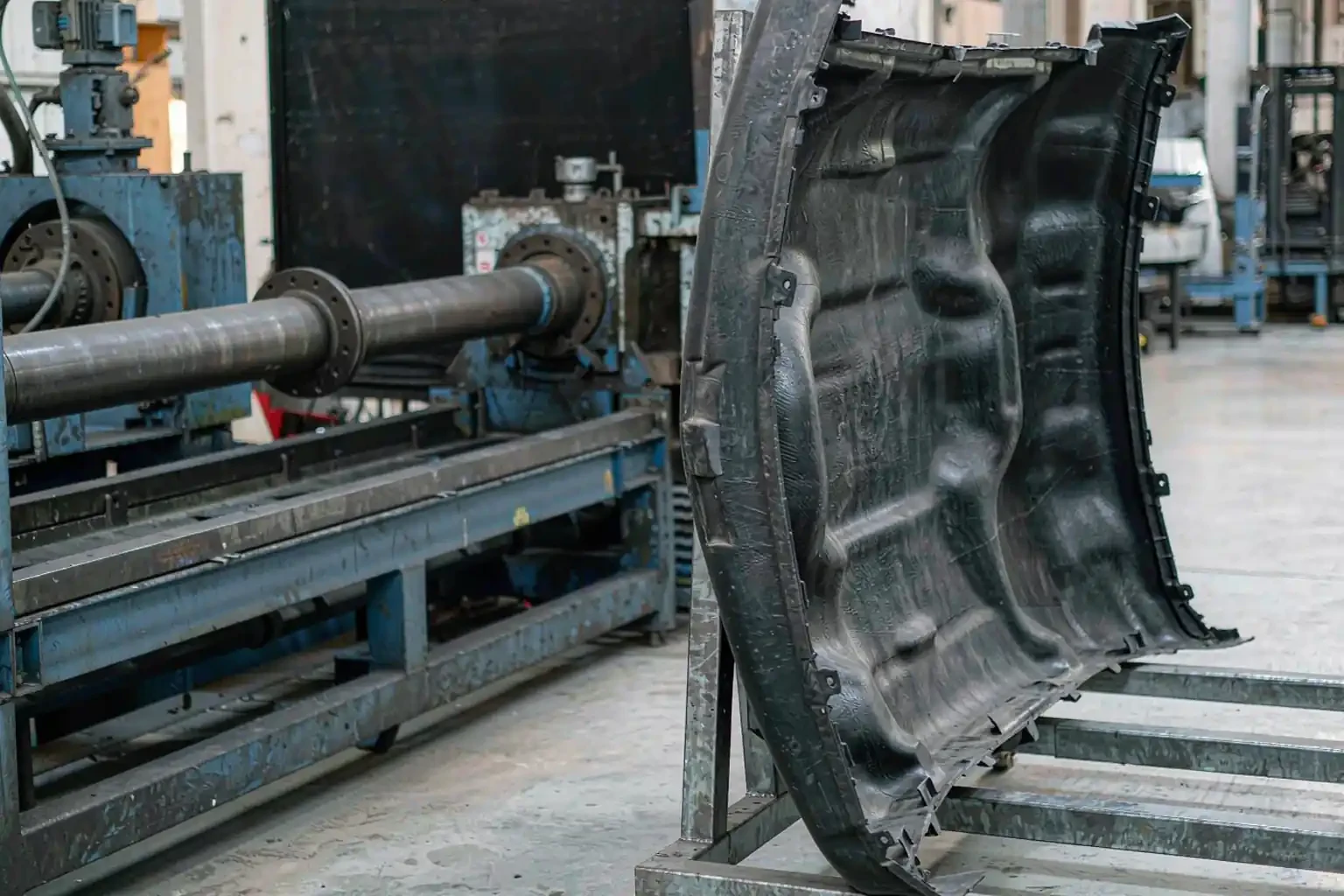

| PP and modified PP | Bumper trim, fender flares, mud flaps |
| TPO | Flexible exterior trim |
| ASA | Unpainted UV-resistant trim |
| PC and PC/ABS | Tough housings and clear parts |

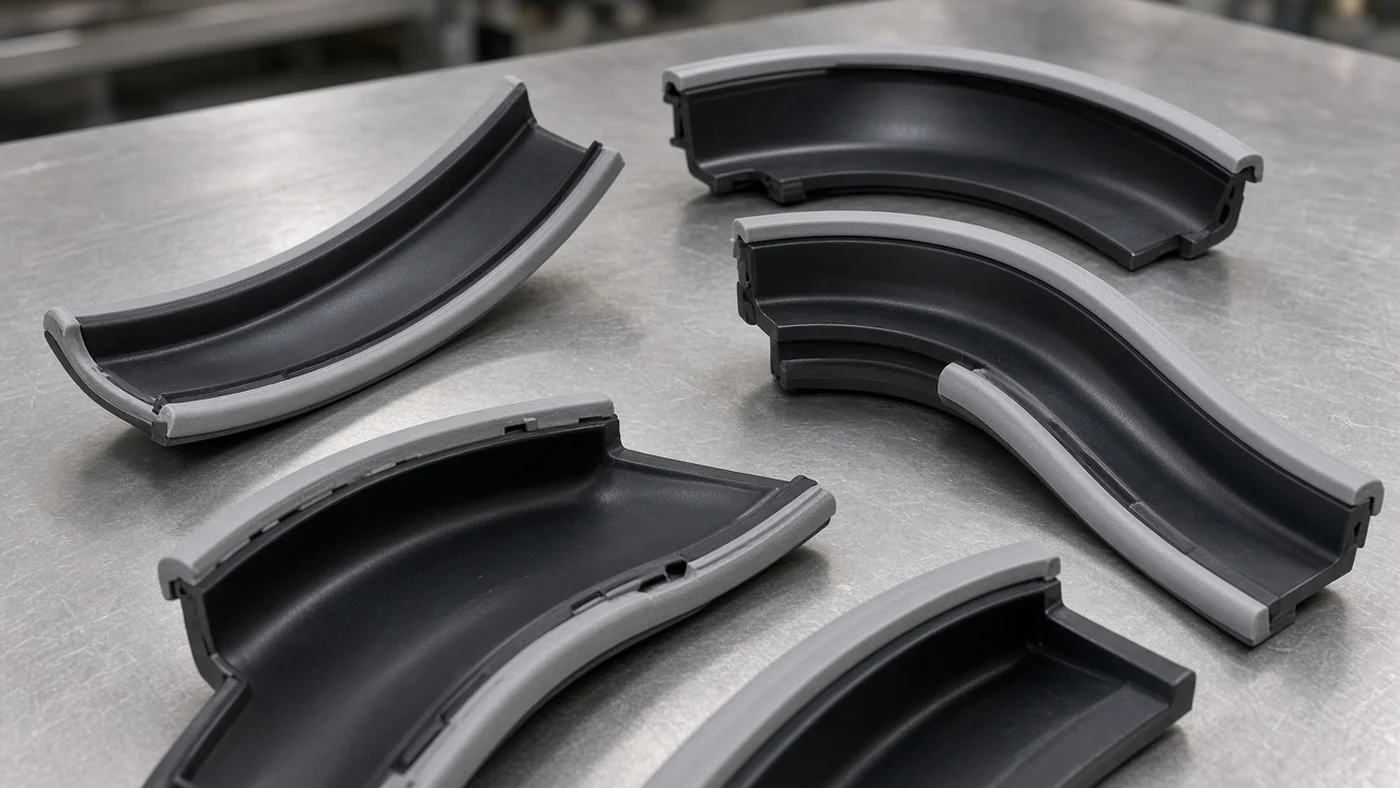

| TPE and TPU | Soft second shots in two-shot molding |
We run injection molding, painting, chrome plating, mold making, CNC machining, inspection and 3D scanning ourselves. For other processes we work with partner factories that we audit and manage, so you still have one point of contact.
Brackets and metal parts that go with plastic exterior parts.
Metal components for kits and assemblies.
Large, low-volume plastic parts.
Small batches of prototype parts.
Available through partners when a program needs it.

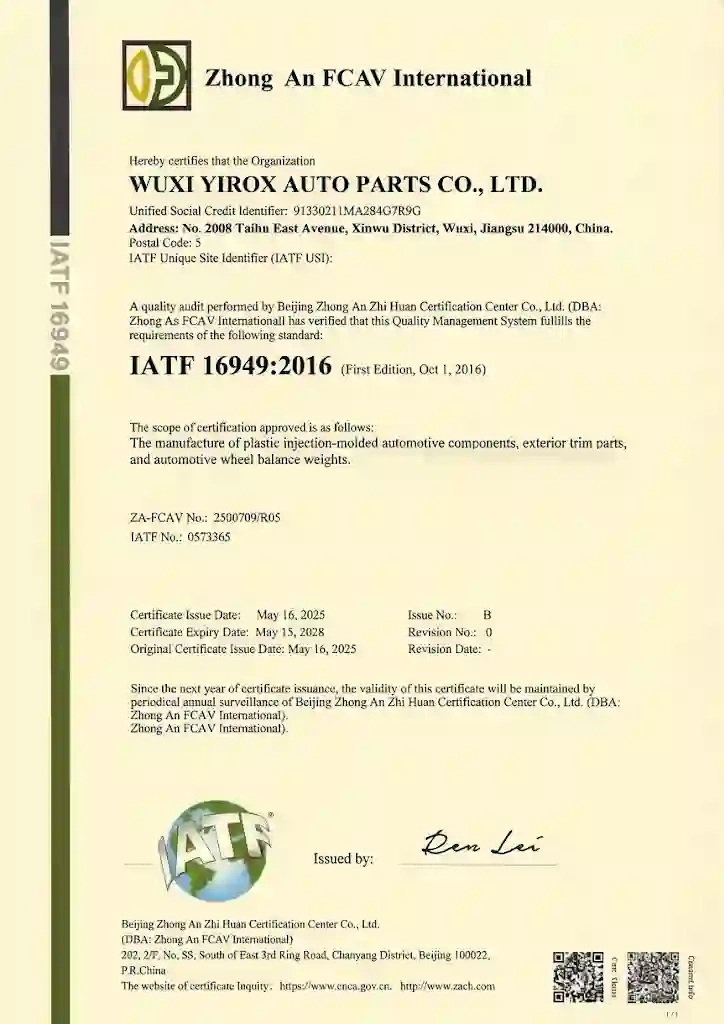

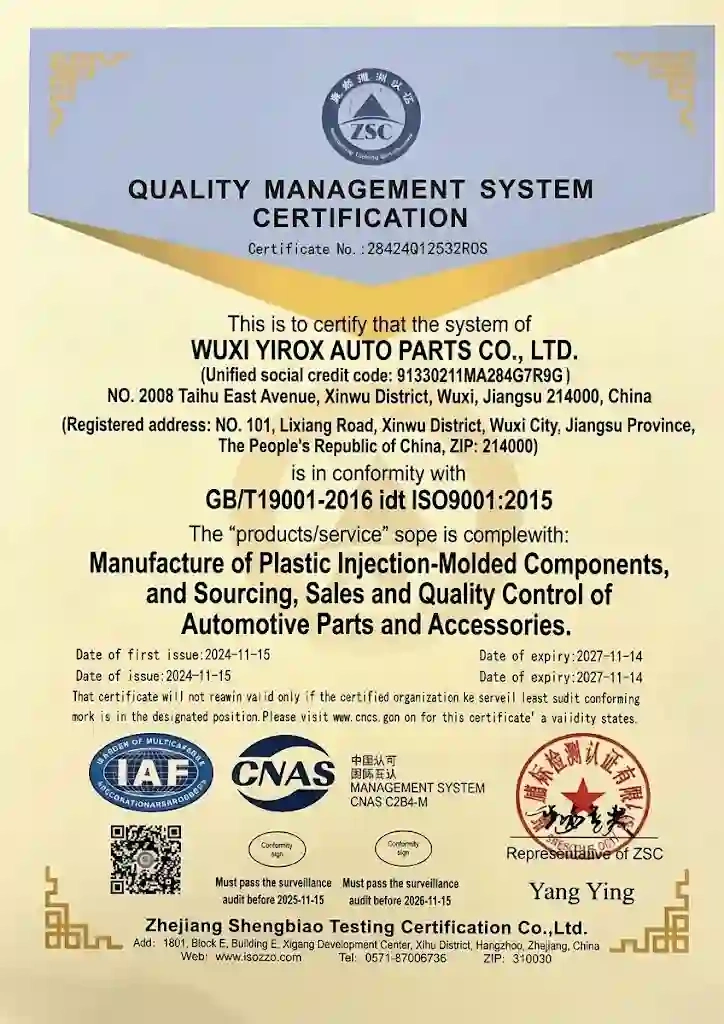

Our quality system is certified to ISO 9001 and IATF 16949. We supply FAI, CMM reports, PPAP up to Level 3 and weathering test reports, with outsourced testing at SGS and CTI (CNAS-accredited). See certifications and compliance.
Need FAI, CMM or PPAP documents?Tell us which documents your customer requires and we will confirm the inspection plan with your quote.
Exterior parts are judged on fit and finish, and both depend on many steps working together. A sink mark from molding shows through gloss paint. Molding stress affects chrome adhesion. A warped side skirt fails on the checking fixture. When molding, finishing and inspection sit with different companies, each problem becomes a discussion about who caused it.
At Yirox the mold shop, molding machines, paint lines, plating line and inspection room are in the same factory and report to the same management. Problems are traced to the root cause quickly, and changes are made where they are needed: in the mold, the process or the finish. For you that means fewer rejected batches, one quality contact and one set of documents for each part.
Covers molding, finishing and inspection together.
The same reference for every department.
FAI, CMM and PPAP from one supplier.
Finished, inspected and packed parts from Wuxi.
Our capabilities are set up for automotive exterior parts, and our customers are businesses that sell or fit those parts.
Body kits, spoilers, lips, grilles and trim developed for specific vehicles, often starting with a 3D scan of the car. Solutions for aftermarket brands →
Parts made to your drawings and standards, with FAI, CMM and PPAP up to Level 3.
Repeat supply of molded, painted and plated parts, packed for warehouses or retail. Solutions for distributors and importers →
Finished parts and packaging under your brand, with low MOQ on selected items. Solutions for e-commerce sellers →
Capabilities show how we make a part; services show how we run your program, from first tool to repeat container. Pick the service that matches your stage to see timelines, documents and what we need from you.
Make parts to your design or develop new ones.
Explore OEM and ODM auto parts →
From vehicle scan to finished product line.
Explore vehicle-specific development →
Your brand on parts and packaging.
Explore private label auto parts →
Steady supply for distributors.
Explore wholesale auto parts supply →Changing material after the mold is cut costs time and money. Before you use our manufacturing capabilities, these guides show where each plastic works best.
Painted or chrome styling part? See why ABS is the default.
Compare ABS plastic grades and finishes →
Bumper, flare or mud flap? See why PP and TPO survive impact and cold.
See PP plastic and TPO design tips →
Need a seal or clear layer? See the 3 material pairs we mold in one cycle.
Compare two-shot molding material pairs →Feedback from buyers who started with one part and moved to repeat orders: what they checked, and what changed once production ran.
“What I value most is being able to get a straight answer. If a drawing needs changing, they explain why. If a product needs another check, they say so. We work with plenty of suppliers, and that kind of communication makes Yirox much easier to deal with.”
“Most suppliers were happy to quote our drawings as they were. Yirox pointed out two areas that might cause trouble during molding. It wasn’t the answer we expected, but it was exactly the kind of feedback we needed.”
“The first order tells you whether a supplier can make the product. The second and third tell you whether they can maintain the same standard. For our team, consistent finish and packing across repeat orders are what make a supplier worth keeping.”
Names and companies withheld at the customer’s request.
Injection molding (42 machines, 90–2,500 t), painting (two 3C2B lines), chrome plating (28-tank automatic line), inspection (two CMMs and appearance instruments), 3D scanning, mold making and CNC machining, all in our factory in Wuxi.
Our CNC machines support molds, fixtures and prototypes for our exterior parts programs. We do not sell machining time as a separate job shop service.

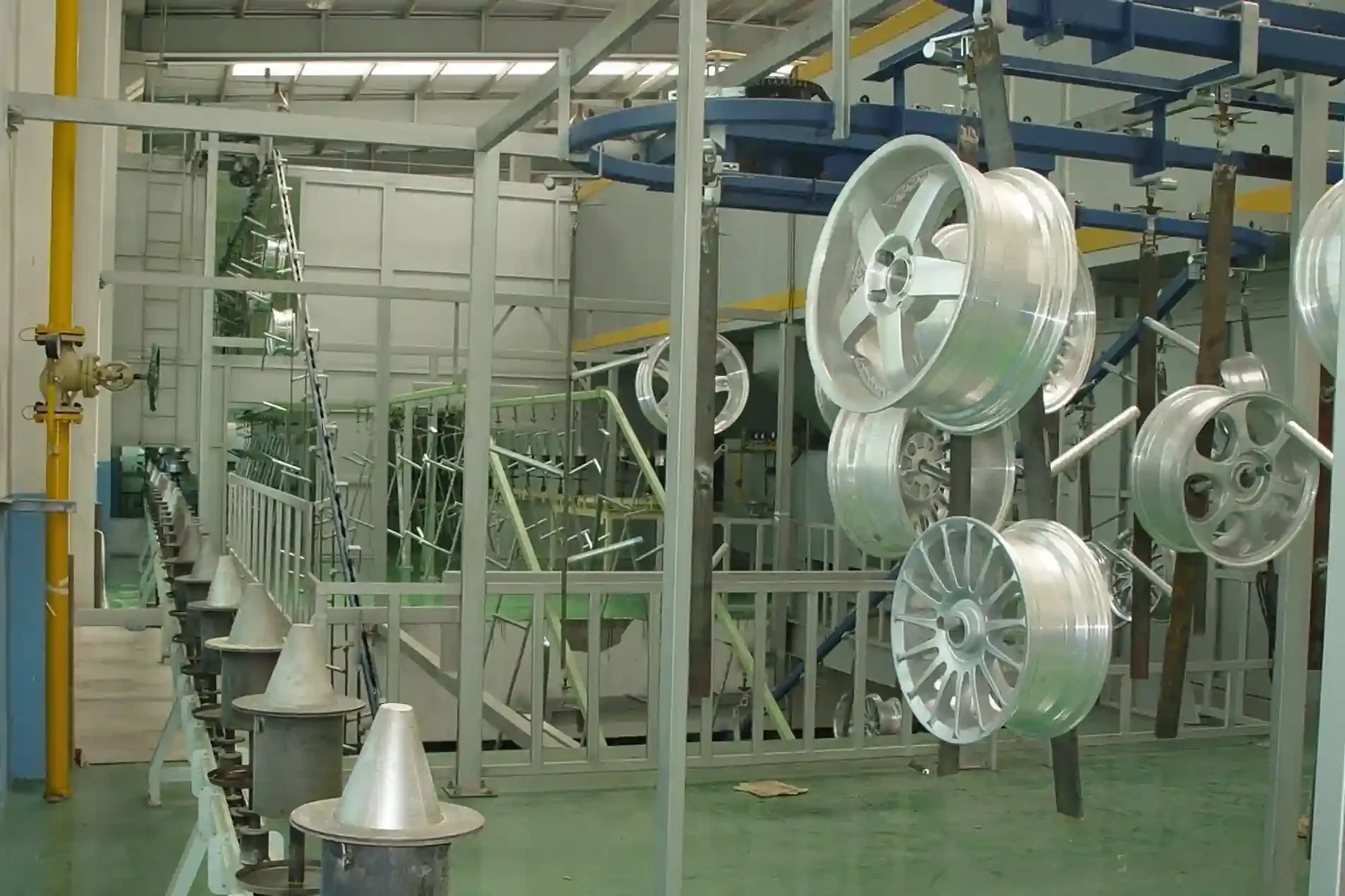

Sheet metal, aluminum die casting, vacuum and thermoforming, vacuum casting and electronics assembly are done by partner factories that we manage.
ISO 9001 and IATF 16949.
We offer low MOQ on selected items. The quantity for your part is confirmed in your quote.
Yes. We can scan, design, build the mold, mold, paint or chrome plate, inspect and pack a part in our own factory, with partner factories for processes such as sheet metal or die casting.
Yes. Our mold shop builds 6–8 molds per month, up to 25 t, in P20 and H13 steel.
Our factory is in Wuxi, China, with about 20,000 m² of production space.
A manufacturer. Molding, painting, chrome plating, inspection, 3D scanning and mold making run in our own IATF 16949 certified factory in Wuxi. Partner factories are managed for processes we do not run in-house.
A drawing, 3D file, sample or photos, plus the target quantity, finish and packing needs. If you only have the original part, we can 3D scan it.
Send your drawings, samples or ideas. We will tell you which processes your part needs and send a quote.
