On an aftermarket LED light bar, “DRL mode” often names a separate accent or backlight circuit. The label alone does not establish an approved daytime running lamp. Confirm whether the function is a DRL, position lamp, or decorative accent, then check its specified output, switching, color, documentation, and permitted installation separately from the main beam.1
Record what lights up, how it is controlled and which function the supporting documents declare. Verify the accent and main-beam states separately before making a daytime-running-lamp claim.
Table of Contents
- What does DRL mode mean on an LED light bar?
- How does light bar DRL wiring usually work?
- Is DRL mode the same as low beam or full brightness?
- What colors and styles are common for light bar DRL mode?
- Is a DRL light bar legal on public roads?
- What should buyers check before choosing a DRL light bar?
- Conclusion: Treat DRL mode as a separate function
- Frequently Asked Questions
- References

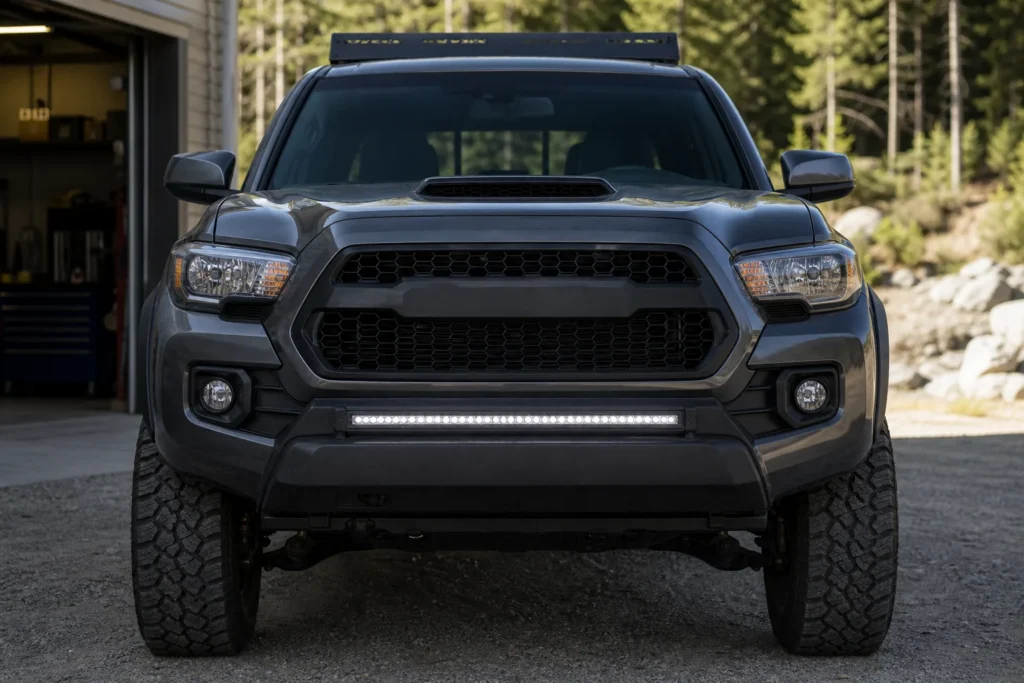

What does DRL mode mean on an LED light bar?
A light bar may have a separate accent circuit, a reduced-power main circuit, or a controller-managed function. Identify which arrangement the exact product uses. A soft glow in a photograph is not enough to classify it as a daytime running lamp.
In a regular off-road light bar, the main LEDs are designed to project useful light at night or in low-visibility off-road conditions. In a DRL-style light bar, an additional low-output circuit can make the vehicle more visible from the front or give the installation a cleaner daytime look.
If the reader is still choosing the main product category, the related guide to off-road LED light bars explains how size, beam pattern, mounting position, wiring, sealing, and road-use caution fit together.
UN Regulation No. 148 addresses defined light-signalling functions, including daytime running lamps. A decorative strip and an approved DRL should therefore be identified separately in the listing and supporting documents.1

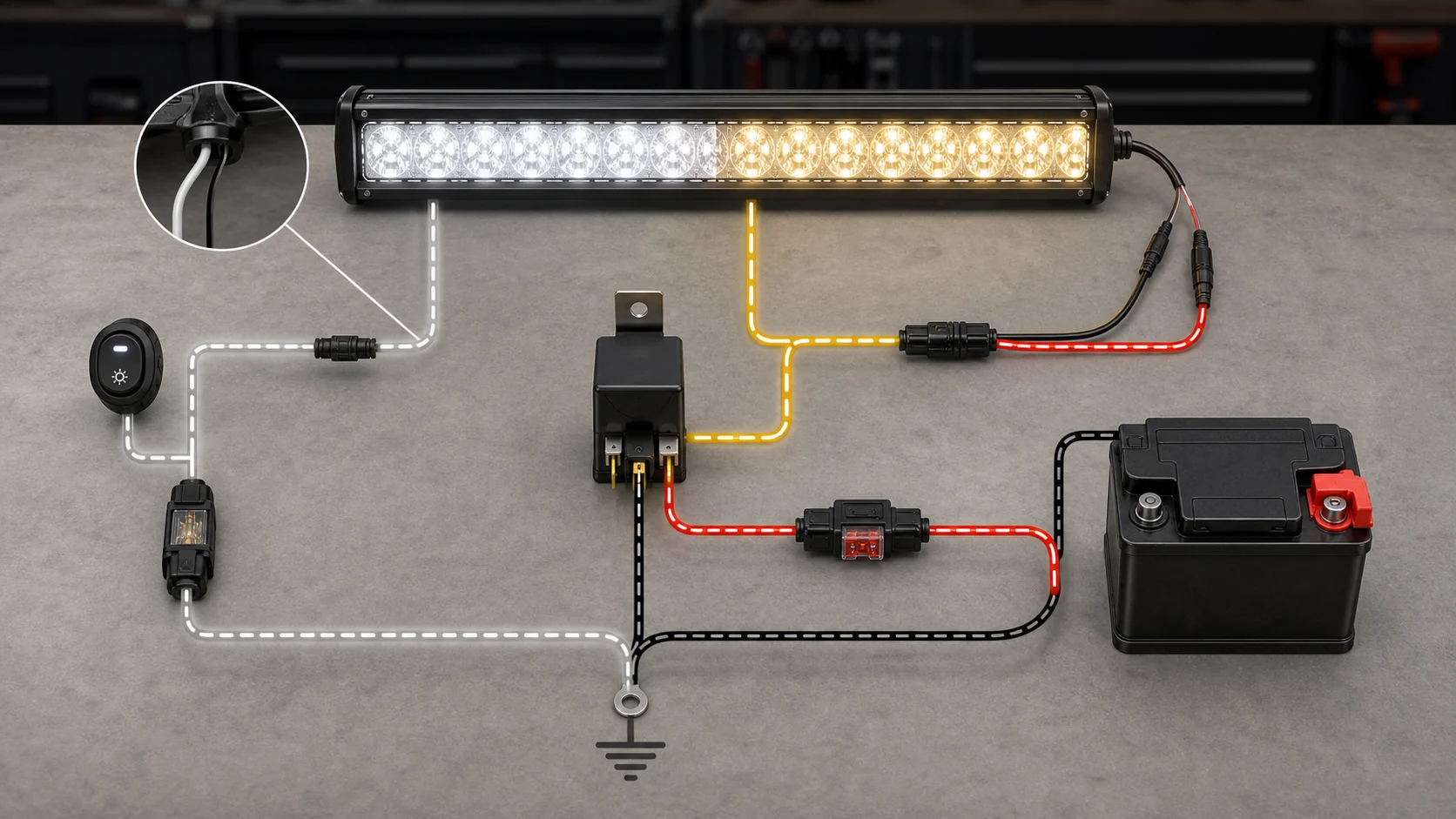

How does light bar DRL wiring usually work?
Identify the actual power and control inputs from the product drawing. The accent may have an independent feed, use a controller, or share hardware with another function; the marketing name does not specify the pinout or permitted combinations.
A common layout includes a main positive and ground for the high-output LEDs, plus an additional wire for the DRL or position-light function. Some products also include amber and white accent wires, separate switch inputs, or a controller module.
The wiring plan should match the vehicle and the product instructions. A DRL circuit may be tied to ignition power, an accessory circuit, a switch panel, or a marker/position light circuit depending on the market and intended use. The main beam should still be fused, relayed, and switched correctly.
For buyers planning the electrical side, the related light bar wiring harness guide explains fuses, relays, switches, wire sizing, connectors, and safe harness routing in more detail.
What should the mode and wiring record show?
Use the manufacturer’s pinout and permitted combinations. Wire color or an extra lead is not a universal DRL connection code.
| Record | Check on the exact product |
|---|---|
| Declared function | DRL, position lamp, accent/backlight, or main illumination |
| Inputs and return | Named connector pins, control logic, supply requirements, and ground arrangement |
| Operating states | Ignition, normal lights, main beam, and other relevant commanded states |
| Interactions | Required dimming or deactivation; which simultaneous modes are permitted |
| Electrical protection | Specified current and the harness, fuse, controller, and switching configuration |
| Verification | Observe the actual mode states against the drawing before final installation |
If the output or control sequence does not match the drawing, resolve the discrepancy before connecting it to the vehicle. Do not improvise a common three-wire layout from a product name.
Is DRL mode the same as low beam or full brightness?
A declared daytime running lamp, low beam, fog lamp and off-road driving beam have different functions. A decorative accent may project little useful light. Identify the function and its documented operating requirements; do not classify it from relative brightness alone.
This difference matters because light output can quickly become glare when a forward-facing auxiliary light is used in the wrong mode. A full light bar may produce thousands of lumens and a strong beam pattern; a DRL accent should be much softer. The related guide to LED lumen output explains why total brightness must be separated from usable beam control.
Beam pattern also remains important. The main light bar may be spot, flood, combo, driving, or scene-focused, while the DRL accent may not project a useful beam at all. For the main beam decision, the related guide to spot, flood, and combo beam patterns is the better comparison.
The safe buying question is: what exactly turns on in each mode? A product page should make it clear whether the DRL circuit is a thin accent, a low-output marker, an amber position light, or a reduced-power version of the main LEDs.

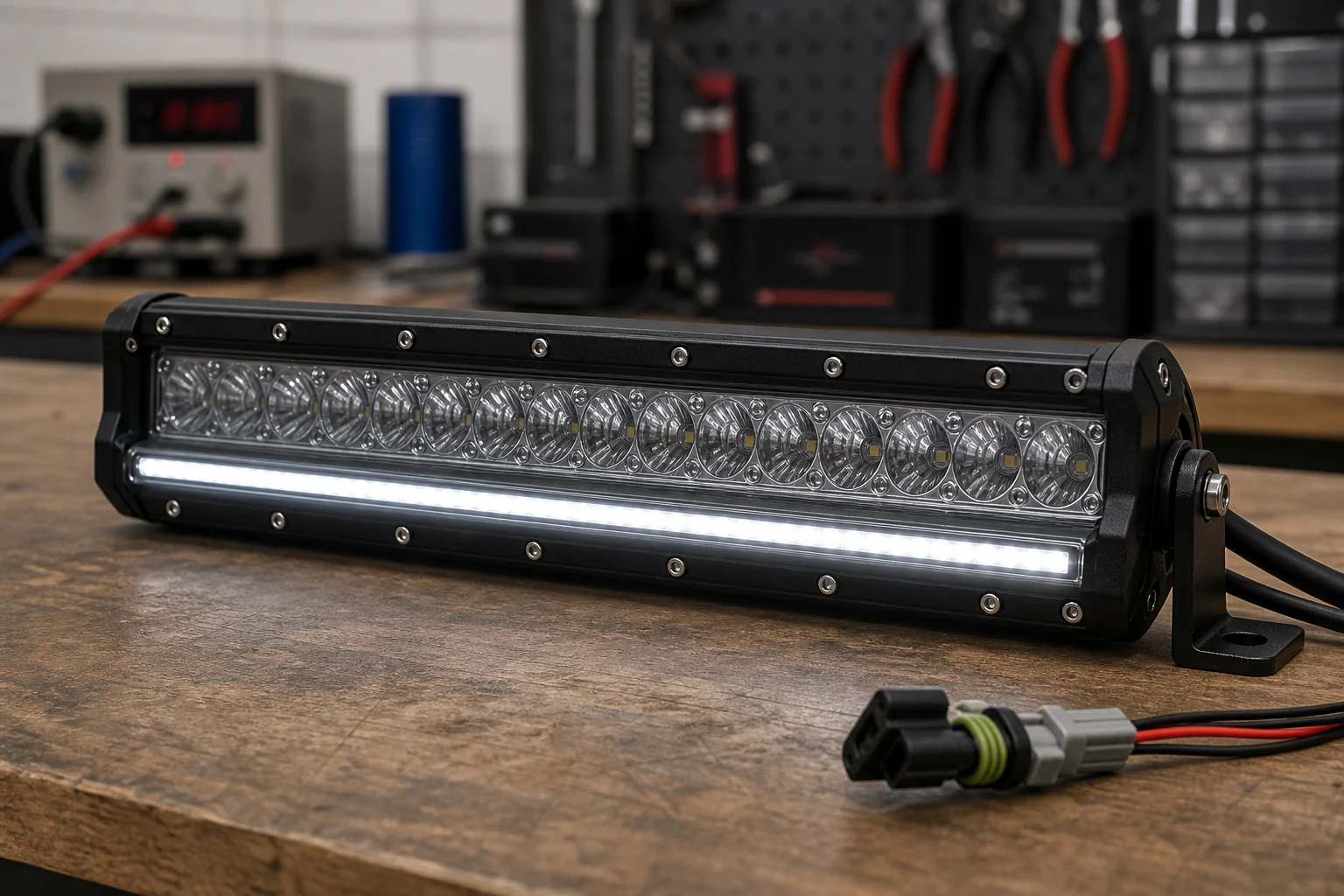

What colors and styles are common for light bar DRL mode?
Common DRL light bar styles include white accent strips, amber accent strips, dual-color white/amber accents, edge-lit bars, halo-style accents, and segmented marker-style lights. White is often used for a clean daytime signature, while amber is often used for marker, dust, or styling applications.
| DRL style | Common look | Best use | Main caution |
|---|---|---|---|
| White strip | Clean modern front signature | Daytime styling and visibility | Must not be confused with full beam |
| Amber strip | Marker or off-road accent look | Permitted accent or signalling use; check the actual function | Local color rules vary |
| Dual-color accent | White and amber options | Flexible product ranges | Wiring and switching must be clear |
| Halo or edge light | Decorative outer glow | Retail styling appeal | May add complexity without performance |
| Segmented DRL | Multiple small light zones | Rugged visual identity | Batch consistency is easy to notice |
For distributors and private-label programs, color consistency matters. A batch where one bar has a cooler white DRL and another has a warmer white DRL can look cheap even if the main beam works. The Yirox Team usually checks accent brightness, color match, wire labels, switch behavior, and packaging photos together because DRL mode is partly visual and partly electrical.
It is also worth checking how the DRL looks in real daylight, not only in a dark sample room. A strip that looks sharp indoors may be too weak under sun, while a strip that looks dramatic at night may be too bright for a daytime accent. Side-by-side sample photos under the same exposure help keep catalog images, customer expectations, and delivered goods aligned.
Is a DRL light bar legal on public roads?
A DRL light bar is not automatically legal for public-road use just because it has a DRL mode. Road legality depends on the lamp function, brightness, color, markings, mounting location, aiming, switching behavior, and the rules in the target market.
NHTSA’s US interpretation considers impairment of required lighting; 49 CFR 393.24 separately addresses commercial-vehicle auxiliary lamps.23 An EMC document under UN Regulation No. 10 describes a different requirement from a DRL’s light-signalling approval. It does not establish DRL photometry or the legality of the final installation.4
For product wording, avoid loose claims such as "street legal" unless the product has the required documentation for the intended market and lamp function. A DRL accent may be acceptable in one installation and not acceptable in another, especially if it is too bright, the wrong color, mounted incorrectly, or wired to operate at the wrong time.

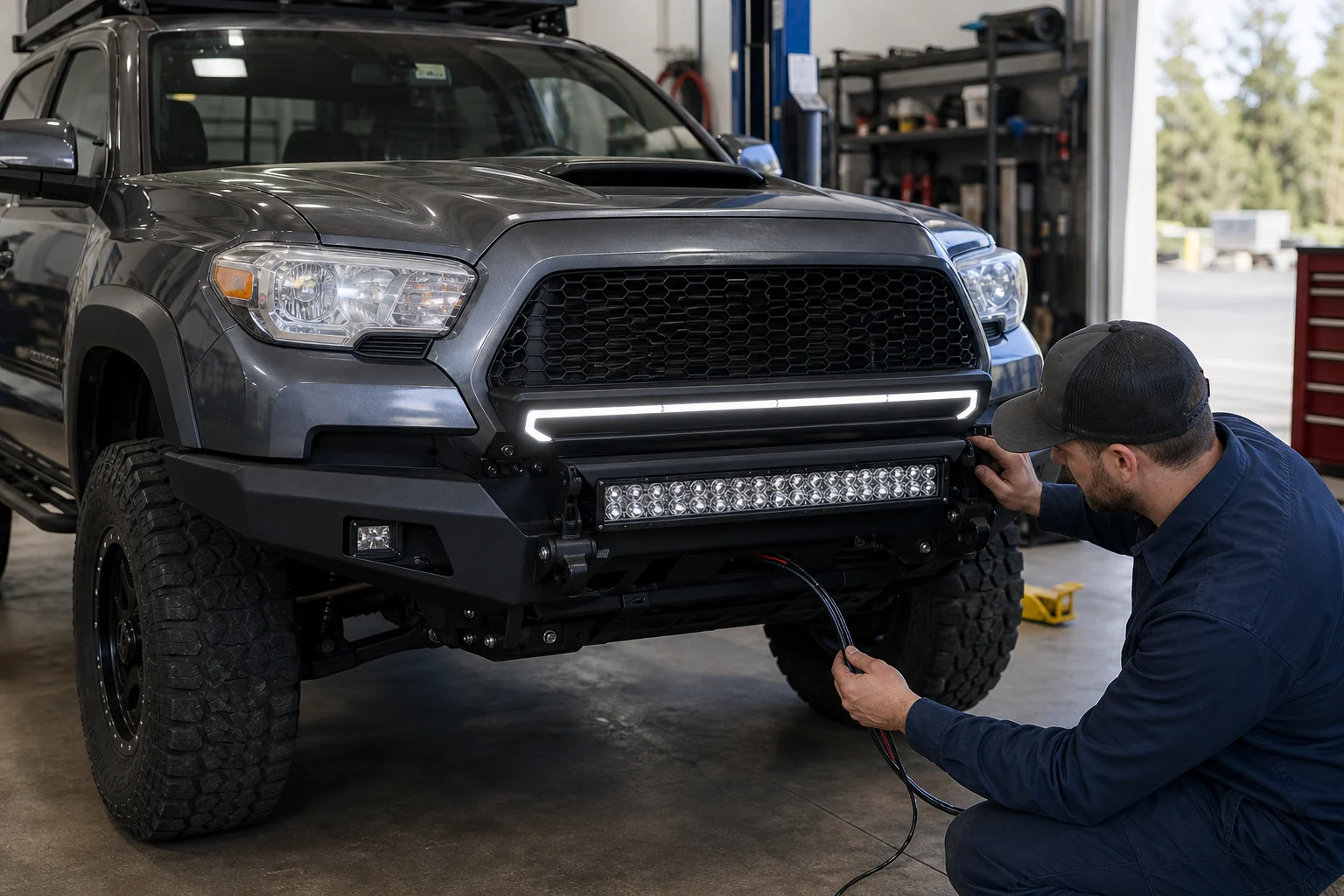

What should buyers check before choosing a DRL light bar?
Buyers should check the DRL circuit design, wire labels, color option, brightness, switching behavior, main beam pattern, IP rating, heat control, bracket fit, and documentation before choosing a DRL light bar.
Start by confirming the mode logic. Does the DRL turn on with ignition power, a switch, a marker-light circuit, or a controller? Does it turn off or dim when the main beam turns on? Can white and amber be powered at the same time, and if so, is that intended?
Then inspect the build. DRL light bars often add extra internal wiring, diffusion material, or light pipes. Those parts need sealing, heat resistance, and vibration control. The related guide to IP ratings for LED lights helps buyers read sealing claims alongside real construction details.
Finally, review the whole kit. A good DRL light bar should include clear wire identification, a suitable harness or wiring recommendation, mounting brackets, correct hardware, and packaging that protects the lens and accent strip during shipping.
Conclusion: Treat DRL mode as a separate function
Identify the exact declared function, verify its operating states and compare the supplied documentation with the lamp and harness. A styling accent and an approved daytime running lamp require different claims; neither approves the main off-road beam.
The best DRL light bar is not the one with the flashiest accent. It is the one with clear mode behavior, controlled brightness, reliable wiring, durable sealing, and honest road-use claims.
If the next step is comparing hardware options, the related off-road LED light bar product range is a practical place to review DRL-style bars alongside beam pattern, housing, harness, bracket, and packaging choices.
Frequently Asked Questions
What does DRL mean on a light bar?
DRL means daytime running light, but aftermarket listings also use the term for an accent or backlight. Check what the product actually declares and whether its documents support that function. A separate illuminated strip is not automatically a compliant DRL, and it does not approve the main off-road beam.
Can I use DRL mode at night?
DRL mode may be visible at night, but it is not a substitute for headlights or a properly aimed driving light. Use the lamp only according to the product instructions and local road rules.
Is amber DRL mode better than white?
Choose the required function and permitted color first, then compare the actual optical output and switching. A white or amber accent is not interchangeable with an approved DRL or fog lamp. Color alone does not establish better visibility in dust, and road-use requirements must be checked for the intended market.
Does DRL mode need a separate switch?
Sometimes. Some installers wire DRL mode to ignition or marker-light power, while others use a separate switch or controller. The product wiring diagram should be followed carefully.
Is a light bar with DRL mode street legal?
Not automatically. A DRL accent does not make an off-road light bar compliant for public-road use. Legality depends on the exact lamp function, markings, brightness, color, mounting, aiming, and local regulations.
